DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

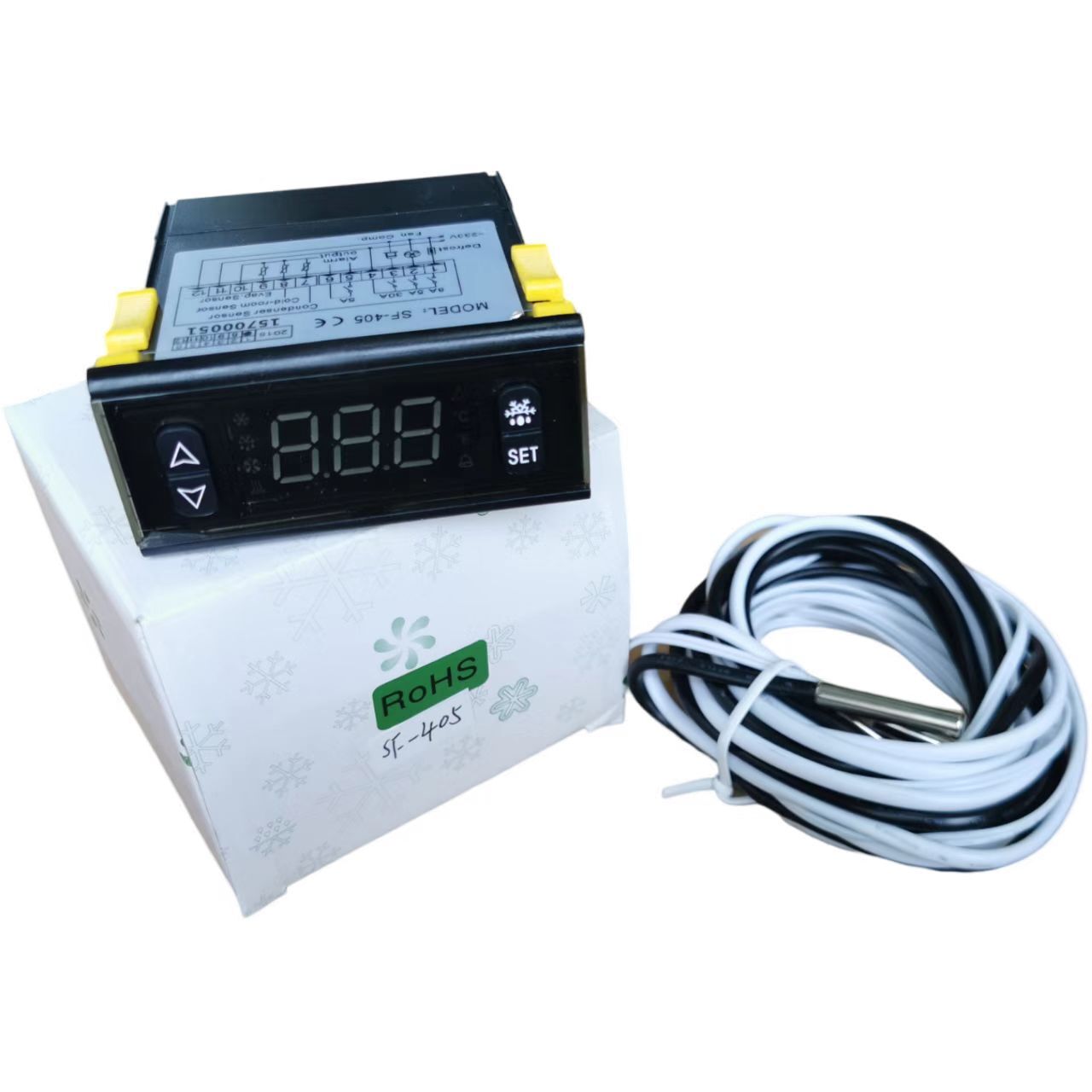

Title: SF-405 TEMPERATURE CONTROLLER

MPN: SF-405

SKU Number: HTN_0003166

Notes:

Brand: SHANGFANG

Model: SF-405

Features

Mini-sized and integrated temperature control

can directly control 1HP compressor (include 1HP)

Temperature display/Temperature control/Manual

Evap. fan control

Time, temperature setting to end defrost

Energy saving mode

Value storing/ Parameter locking

Self testing



Technical Data

Temperature display range: -45~66℃(-45~150℉)

Set temperature range:－40℃~45℃(－40~113℉)

Accuracy:±01℃(02℉)

Temperature sensor: NTC, three sensors (cold room& defrost control), 2 meters (Neither positive nor negative) Condenser sensor, door switch (optional)

Compressor :N.O. 30A/250VAC (can directly connect to 1HP compressor, if more needs

Defrost heater: N.O. 8A/250VAC (can directly connect to 1KWload, if more needs to

Evap. fan: N.O.5A/250VAC Alarm: N.O.5A/250VAC

Increase dor (condenser sensor, door switch, alarminput) model selection input, when

door control input there is energy saving mode.

Dimension:77(L)mm×35(W)mm×70(D)mm

Mounting hole dimension: 71mm( L)×29mm(W)


Parameters



Paramete

Function

Set range

Default

PAS

Password

0 0～99

1 5

E1

Lowest set point limit

－40℃/－40℉～Set temp.

－25℃/－13℉

E2

Higher set point limit

Set temp.～45℃/113℉

20℃/68℉

E3

hysteresis

01～20℃/02～36℉

04℃/07℉

E40

Comp.start delay time

00～10Min

2Min

E41

Delay starting time

00～10Min

2Min

E5

Offset on room temp.

－20～20℃/－36～36℉

00℃/00℉

E6

Offset on evap. Temp

－20～20℃/－36～36℉

00℃/00℉

E7

Offset on condenser temp.

－20～20℃/－36～36℉

00℃/00℉

F0

Defrost type

00=defrost by turning off comp.

01=heating defrost

02=hot gas defrost

01

FF0

when enter hot gas defrost comp. delay starting time

00～20Min

00Min

FF1

Defrost interval way

00=power on time

01=comp. continuously working time

00

F1

Max defrost duration

01～60min

20min

F2

Defrost interval

00～24Hr

6Hr

F30

Defrost starting

temperature

-40℃/-40℉～F31

00℃/32℉

F31

Defrost termination temperature

F30～40℃/104℉

08℃/46℉

F4

Display during defrost

00= normal display

01= last value before defrost

02=dEF



00

F5

Dripping time

00～30min

2min

P1

Fan control during refrigeration

00＝synchronized with compressor

01= keep running

02＝determined by P4, P5

00


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003166
Brand Universal
Shipping Weight 1.0000kg
