DESCRIPTION

This replacement is compatible with UNIVERSAL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

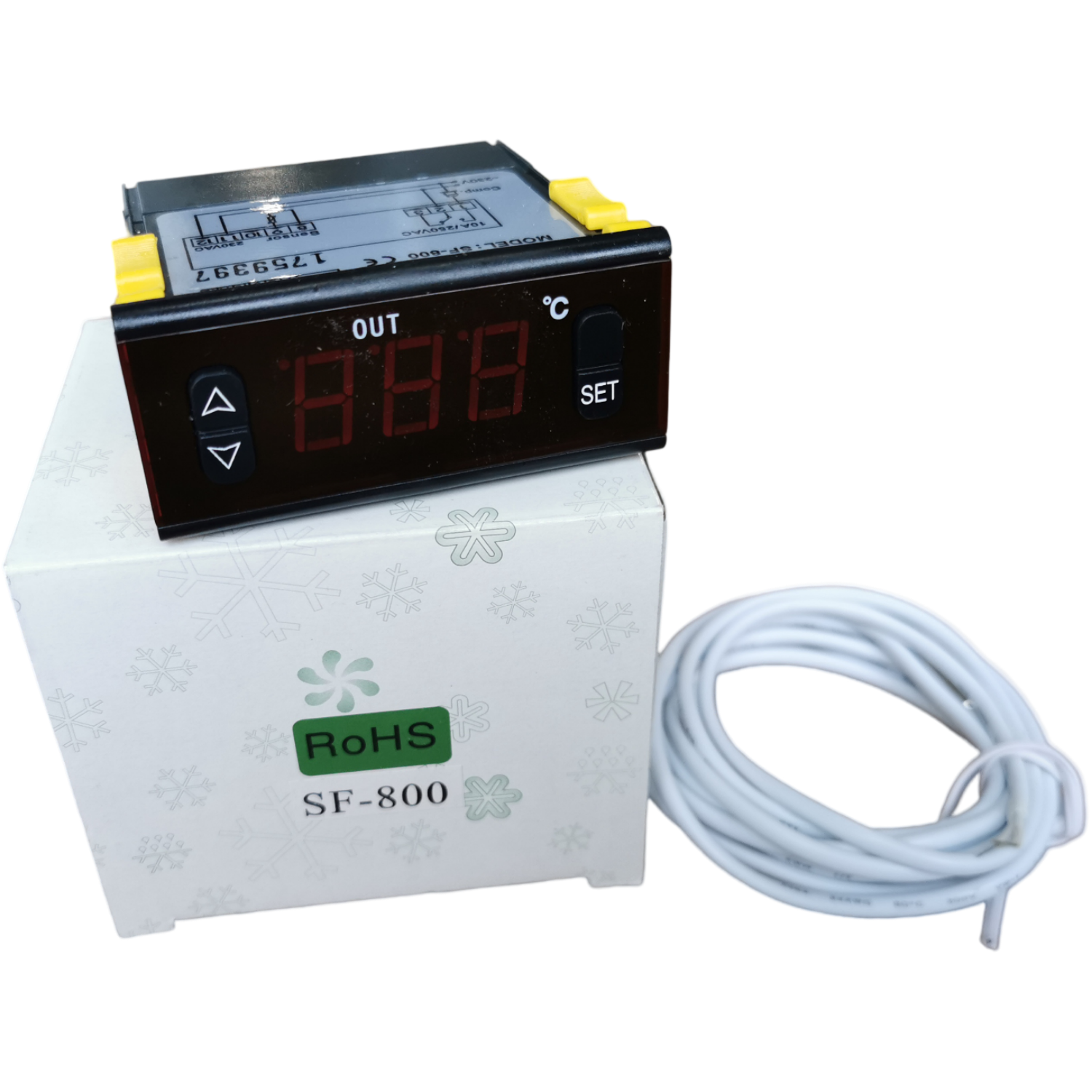

Title: SF-800 TEMPERATURE CONTROLLER

MPN: SF-800

SKU Number: HTN_0003176

Notes:

Brand: SHANGFANG

Model: SF-800

Features
Temperature Display
Temperature Control
Value Storing
Self Testing
Parameter Locking
Technical Data

Range of temperature displayed:-45℃~99℃
Range of set temperature:-45℃~99℃
Accuracy:±1℃
Compressor: N.O. 10A/250VAC(one HP)
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameters 1
Parameter
Function
Set range
Default
E1
Lower setpoint limit
45Set temp.
30
E2
Higher setpoint limit
Set temp.99
30
E3
Temp.hysteresis
120
3
E4
Comp.start delay time
010Min
2Min
E5
Offset on room temp.
1010
0

Parameters 2

Paramete

Function

Set range

Default

F1

Max defrost duration

190min

15min

F2

Defrost interval time

024Hr

4Hr


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003176
Brand Universal
Shipping Weight 1.0000kg
