DESCRIPTION

This replacement is compatible with SHANGFANG Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

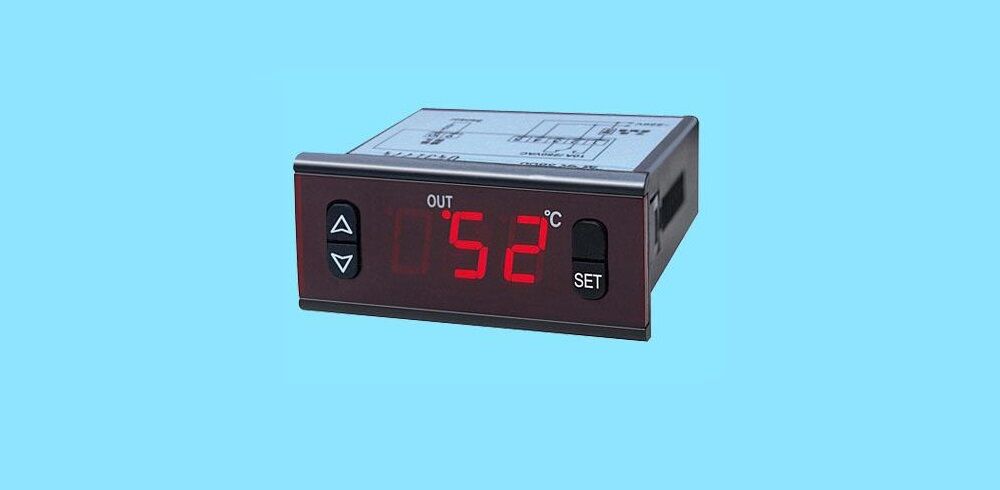

Title: SF-808 SHANGFANG Temp/Controller For Freezer －45～100℃ Automaticlly defrost

Brand: Shangfang

MPN: SF-808

SKU Number: HTN_0003188

Notes:

Brand: SHANGFANG

Model: SF-803

SHANGFANG Temp/Controller SF-808 For Freezer  －45～100℃ Automaticlly defrost

Download instructions: SF-808

Features
Temperature Control
Manual/automatic defrost
Time,temp.setting to end defrost
Automaticlly defrost
Value Storing/Self Testing
Parameter Locking

Technical Data
Range of temperature display:－45～100℃
Range of set temperature:－45～45℃
Accuracy:±1℃
Compressor: N.O. 10A/240VAC
Defrost: N.O. 10A/240VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameters

Parameter

Function

Set range

Default

E1

Lower setpoint limit

－45℃～Set temp.

－35℃

E2

Higher setpoint limit

Set temp.～45℃

20℃

E3

Temp.Hysteresis

1～10℃

4℃

E4

Comp.start delay time

0～10Min

2Min

E5

Offset on room temp.

－20～20℃

0

F1

Max.Defrost duration

1～60Min

20Min

F2

Defrost interval time

0～24Hr

6Hr

C2

High temperature alarm

C3～40℃

40℃

C3

Low temperature alarm

－40℃～C2

－40℃

C4

Alarm delay time

0～90Min

90Min
