DESCRIPTION

This replacement is compatible with SHANGFANG Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

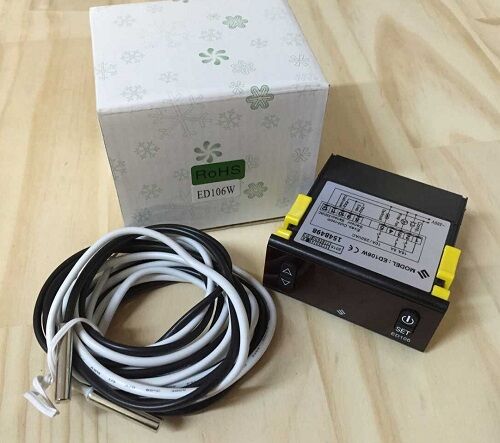

Title: SHANGFANG Digital Temperature Controller ED106 -45 to 150oC(-45 to 150o F)

Brand: Shangfang

MPN: R026039

SKU Number: HTN_0003183

Notes:

SHANGFANG Digital Temperature Controller ED106 -45 to 150oC(-45 to 150o F)

Features
Temperature control
Evaporator fan control
Automatic/manual defrost
Defrost by electric heater
Time/temp. seting to end defrost
Re-start delay
Celsius/Fahrenheit degrees

Technical Data
Range of temperature display:－45～150℃  (－45~150℉)
Range of set temperature:－45～45℃  (－40~113℉)
Accuracy:±1℃(±2℉)
Compressor: N.O. 16A/250VAC
Defrost: N.O. 10A/250VAC
Evap. Fan: N.O. 5A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm


Parameters

Parameter

Function

Set range

Default

E1

Lower setpoint limit

－45℃/－45℉～Set temp.

－35℃/－31℉

E2

Higher setpoint limit

Set temp.～45℃/113℉

45℃/113℉

E3

Temp.Hysteresis

1～20℃/1.8～36℉

4.0℃/7.2℉

E4

Comp.start delay time

0～10Min

2Min

E5

Offset on room temp.

－20～20.0℃/－36.0～36.0℉

0

E6

Offset on evap.temp.

－20～20.0℃/－36.0～36.0℉

0

F0

defrost function

0=Electric heater  1=Hot gas

0

F1

Max.defrost duration

1～60Min

20Min

F2

Defrost interval time

0～24Hr

6Hr

F3

Defrost termination temp.

0～30℃/32～86℉

8℃/46℉

      F4

Display during defrost

0=Normal display
1=Last value before defrost

0

F5

Fan operating function

0=Parallel with comp.

1 = Continuous running except defrost

0

F6

Dripping time

0～30 Min

2Min

F7

Fan delay start mode

after defrost

0=temperature

1= time

1

F8

Fan delay start time

 after defrosting.

0～10Min

2 Min

F9

Fan start temperature after defrosting(evaporator)

－30~30℃

－22~86℉

5℃

41℉

C1

Temperature unit

0s=℃    1=℉

0
