TECHNICAL SPECS

Title: SHANGFANG SF-102S COOL ROOM FRIDGE DIGITAL CONTROLLER WITH DEFROST FUNCTION

Type: Roller

Suitable Brand: Shangfang

Suitable Applicance Class: Fridge

Suits to: SF-102S

MPN: SF-102S

Model: SF-102S

UPC: Does not apply

Notes: DIGITAL CONTROLLER FOR COOL ROOMS CHILLERS

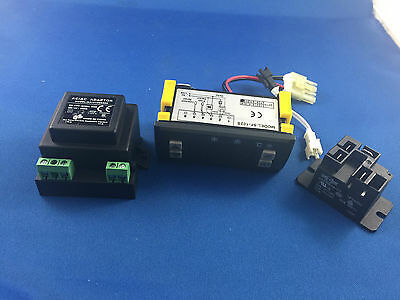

SF-102S
COMES WITH A PROBE
1X SOLID STATE RELAY , 1X 12 VOLT TRANSFORMER
CAN REPLACE DIXELL , CAREL CONTROLLER
Brand new
-40C to 95C adjustable
30 Amp switching capacity for the compressor
30 Amp switching capacity for the fan
230V AC, 50HZ
Quite simple to set it up and program
It can be used for commercial fridges, cool rooms , chiller
Dimension:77(Length)×35(Width)×70(Depth)mm
1. Set temperature (compressor stop temperature) adjustment
• Press
SET
button, the set temperature is displayed.
• Press
▲
or
▼
to modify and store the displayed value.
• Press
SET
button to exit the adjustment and display the unit interior temperature.• If idle for for 10 or more seconds, the unit interior temperature will be displayed.
2. Parameter setup
• Press
SET
button and hold for 6 seconds to enter the parameter setup mode while E1 flashes.• Press
SET
button again to toggle through the parameters (see table below).
• Press
▲
or
▼
buttons, the value will be displayed and can be modified and stored.
• If idle for 10 seconds the unit interior temperature will be displayed.
ParamEtEr
FunctIon
SEt rangE
DEFault
S
Set Point
33 to 41 °F
35 °F
E1
lower set point limit
33 °F
33 °F
E2
raise set point limit
Set temperature 41 °F
41 °F
E3
temperature Hysteresis
1 to ~18 °F
3 °F
E4
comp. start delay time
0 ~ 10 min
4 min
E5
offset on room temp.
-5 ~ 5 °F
0
E6
offset on evap. temp.
-5 ~ 5 °F
0
F1
max. frost duration
1 ~ 60 min
10 min
F2
Defrost interval time
0 ~ 24 hr
2 hr
F3
Defrost termination temp.
32~68 °F
46 °F
F4
Display during defrost
0=norm. disp., 1=last value before defrost
1
c1
temperature unit
0 = °F , 1 = °F
°F
Parameter
Function
Set range
Default
E1
Lower setpoint limit
-45
o
C/40
o
F to Set temp.
-35
o
C/-31
o
F
E2
Higher setpoint limit
Set temp. to 45
o
C/120
o
F
20
o
C/68
o
F
E3
Temp.Hysteresis
1 to 10
o
C/1 to 18
o
F
4
o
C/7
o
F
E4
Comp.start delay time
0 to 10Min
2Min
E5
Offset on room temp.
-5 to 5
o
C/
o
F
0
E6
Offset on evap.Temp.
-5 to 5
o
C/
o
F
0
C1
Temperature unit
0=
o
C 1=
o
F
0
F1
Max.Defrost duration
1 to 60Min
20Min
F2
Defrost interval time
0 to 24Hr
6Hr
F3
Defrost termination temp.
0 to 20
o
C/32 to 68
o
F
8
o
C/46
o
F
F4
Display during defrost
0=Normal display
1=Last value before defrost
0
F5
Fan operating function
0=Parallel with comp.
1=Continuous running except defrost
0
FOR FURTHER INFO:
http://www.mtlcool.com/docs/sf-102_manual.pdf
