This replacement is compatible with HONGSEN Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

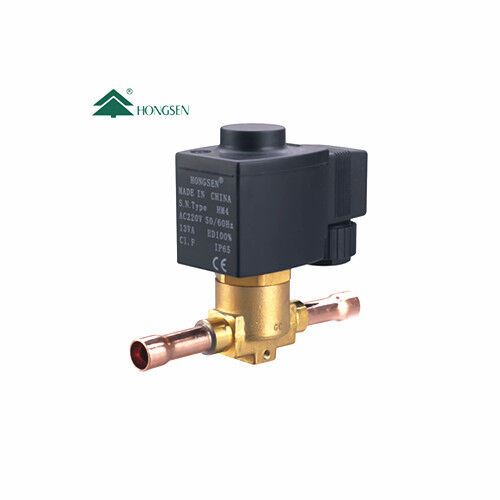

Title: Solenoid Valve 1070-5 5/8" SAE HONGSEN Model 10 COIL

Brand: Hongsen

MPN: R050004

SKU Number: HTN_0003215

Notes:

HONGSEN Model 10 Solenoid Valve 1070-5  5/8" SAE INCL.COIL

· Model 10xx solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow.
· Model 10xx solenoid valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air conditioning unit.
· The valve seat of Model 10xx solenoid valve is well sealed with perfect sealing performance.
· Model 10xx solenoid valves with solenoid of different voltage are available and the valve body is universal.
· Both packed and separated Model 10xx solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Features:

· Only NC type solenoid valve is available.
· The max. design temperature is 105°C.
· 8W solenoid and max. operating pressure differential (MOPD) is 2.1 MPa.
· It is applicable to various applications in freezer, cold store and air conditioning unit.
· The max. size of flare connection is 5/8 in.
· The max. size of welded connection is 7/8 in.
· The solenoids of different power supply are available.
· The thread capped solenoid is easy to be manually mounted and dismounted.
· The crack-proof solenoid is applicable to general ambient condition.

Technical Paramengers:

Applicable Refrigerant HCFC and HFCMax. Operating Pressure Differential(MOPD) 2.1MPa

Applicable Medium Temperature -25°C~+105°C

Applicable Ambient Temperature for Solenoid-2.5°C~+60°CMax.

Operating Pressure 3.0MPa

Standard Voltage of Solenoid AC380V,AC220V/50HzMin.

Pressure Differential to Open Valve Direct-operated : Servo-operated

Allowable Voltage Fluctuation for Solenoid +10%~-15%

Connection of Solenoid Standard 3-wire insert connector


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003215
Brand Hongsen
Shipping Weight 1.0000kg
