DESCRIPTION

This replacement is compatible with SUPCO Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: SP-M500 SUPCO Supco Led Megohmmeter

Brand: Supco

MPN: SP-M500

SKU Number: HTN_0003243

Notes:

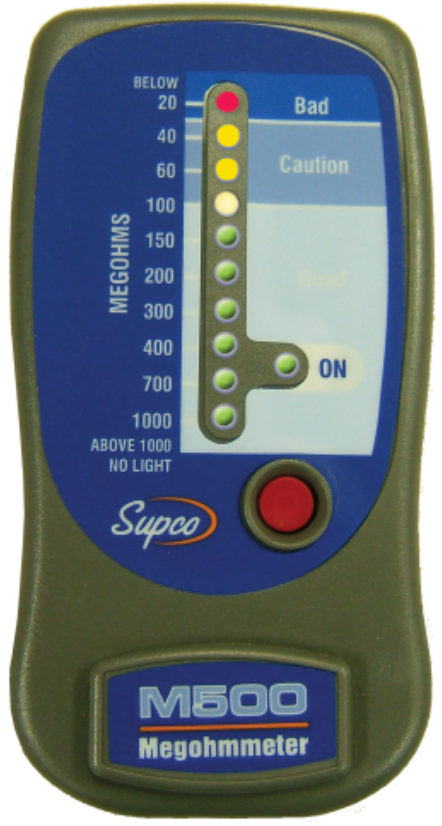

M500--LED MEGOHMMETER

An inexpensive alternative to taut band (swing needle) megohmmeters, the M500 provides fast and accurate measurements to verify the condition of the insulation.

Features/Benefits

  • Hand held
  • Impact resistant
  • Measure insulation values up to 1000 megohms @ 500VAC
  • Operates on 2 C batteries (not included)
  • Soft carrying case included
  • Test leads store in case
  • Zone scale to indicate insulation condition
  • WARNING: Prop 65 info

Specifications

Measurement/Function:Insulation Resistance
Range:20 to 1000 megohms
Temperature Range:32°F to 120°F (0°C to 50°C)
Lead Length:6"

Applications

  • Motors
  • Relay Control circuits
  • Panel Boards
  • Appliances
  • Hermetic Refrigeration Compressors

Downloads

Cross Reference

  • Replacement Part: DMEG3
    Part Description: Megohmmeter
    Manufacturer: UEI®
  • Replacement Part: 1507
    Part Description: Megohmmeter
    Manufacturer: FLUKE®
  • Replacement Part: 380260
    Part Description: Megohmmeter
    Manufacturer: EXTECH®
  • Replacement Part: AMB-45
    Part Description: Megohmmeter
    Manufacturer: Amprobe®

FAQ

  • Can M500 be used on 3 phase units?
    Yes. Attach 1 lead to chassis and 1 lead to the motor terminal. Repeat for each phase.
  • Will this work on Scroll compressors?
    The M500 sends high voltage spikes (very low amps) through the windings (must be grounded to the case) testing the insulation. It works fine on scroll compressors.


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003243
Brand Supco
Shipping Weight 1.0000kg
