DESCRIPTION

This replacement is compatible with HONEYWELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

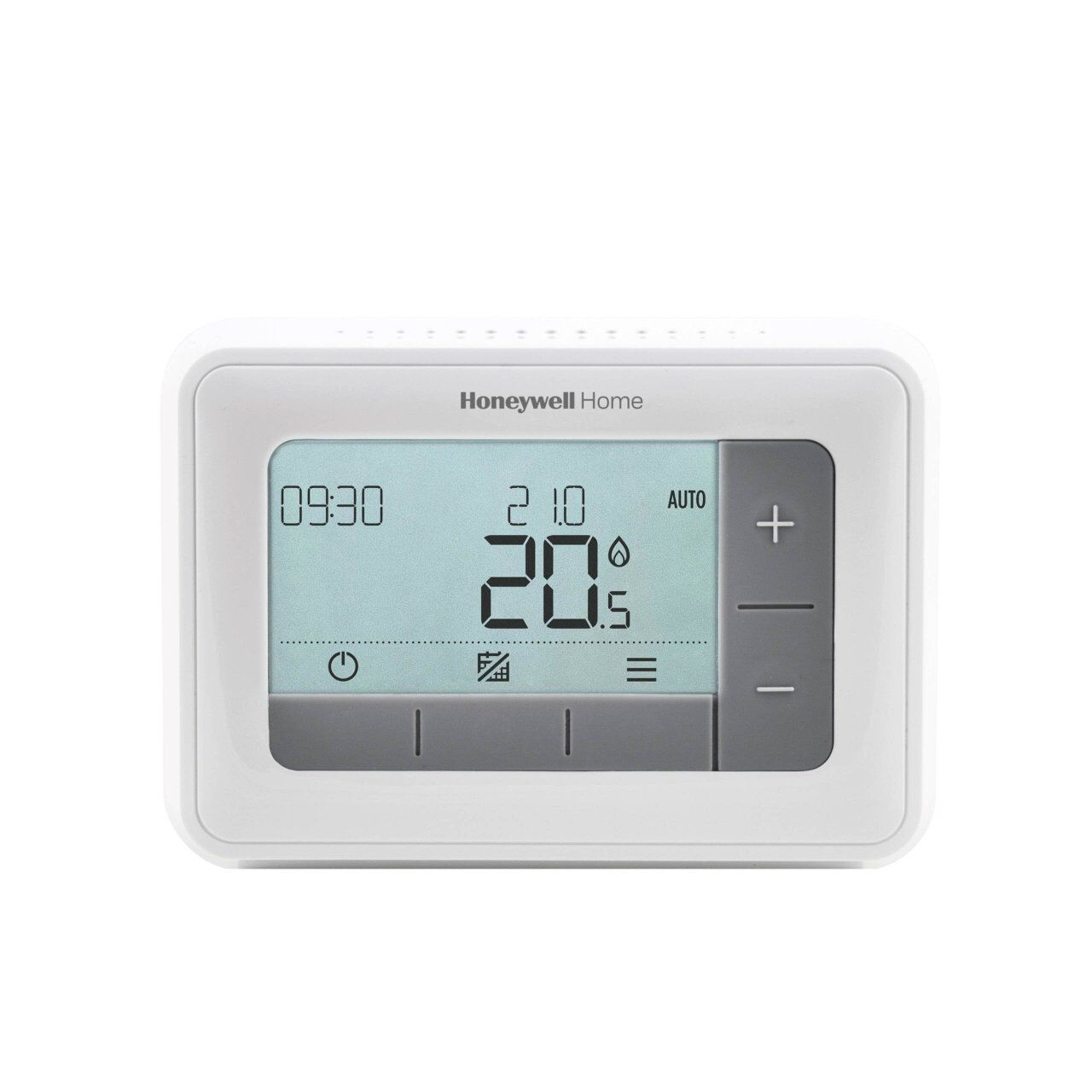

Title: T4H110A1021 Honeywell T4 Series Wired Wall-Mounted (Thermostat only) (Spare)

Brand: Honeywell

MPN: T4H110A1021

SKU Number: HTN_0003361

Notes:

T4H110A1021 Honeywell T4 Series Wired Wall-Mounted (Thermostat only) (Spare)

General Information

  • Thermostat Type: Programmable
  • Approvals and Standards: EMC: 2014/30/EU, LVD: 2014/35/EU, R&TTE: 1995/5/EC, Wire access: From back via large wall box opening, ErP: Class V (+3 %), (EU) 811/2013
  • Smart Home Integration: No
  • Touchscreen: No
  • Display Time Format: 12 Hour (AM/PM), 24 Hour
  • Modes of Operation: Off mode

Power Supply & Battery

  • Power Supply: 2x AA Batteries
  • Color: White

Environmental Conditions

  • Ambient Operating Temperature (Max): 40 °C
  • Ambient Operating Temperature (Min): 0 °C
  • Shipping and Storage Temperature (Max): 55 °C
  • Shipping and Storage Temperature (Min): -20 °C

Control & Functionality

  • Programming Features: Self-learning TPI Fuzzy Logic algorithm, Following Schedule, Frost Protection, Temporary Override, Timed Override, Holiday Mode
  • Backlight Options: On/Off
  • Control Output Signal: Switching Volt free relay
  • ErP Class: IV
  • Temperature Accuracy: 0.5 °C
  • Setpoint Temperature (Max): 35 °C
  • Setpoint Temperature (Min): 5 °C
  • Setpoint Blocking: Yes
  • Setpoint Limiting: Yes

Electrical & Wiring

  • Terminal Wire Size (Max): 1.5 mm²
  • End Switch Function and Capacity: 230Vac, 5A

Physical Dimensions

  • Product Height: 97 mm
  • Product Length: 136 mm
  • Product Width: 28 mm
  • Mounting Location: Wall

Protection

  • Protection Class: IP30

Resources
T4H110A1021 Info Sheet

T4H110A1021 User Guide

T4H110A1021 Installation Guide
See All Honeywell Thermostats

Warning

  • Must be installed by a qualified electrician
  • Ensure power is off prior to any maintenance


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003361
Brand Honeywell
Shipping Weight 1.0000kg
