DESCRIPTION

This replacement is compatible with HONEYWELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

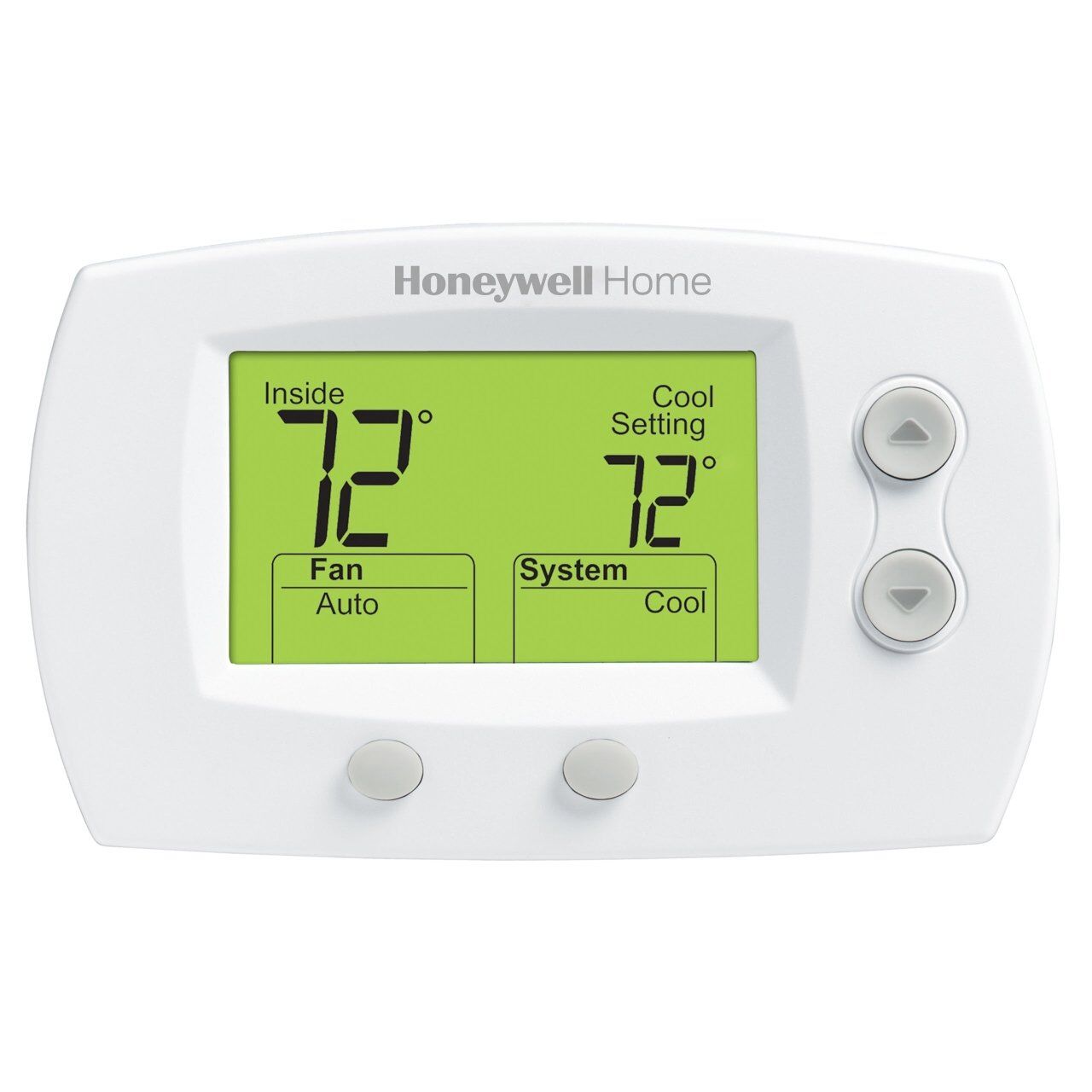

Title: TH5220D1029 Honeywell FocusPRO® 5000 Digital Thermostat Standard Display

Brand: Honeywell

MPN: TH5220D1029

SKU Number: HTN_0003411

Notes:

TH5220D1029 Honeywell FocusPRO® 5000 Digital Thermostat Standard Display

Application and Features

  • Application: Conventional Systems, Heat Pumps
  • Product Features: Battery-free; On-screen heating power indicator

Thermostat Type and Modes of Operation

  • Thermostat Type: Digital, Non-programmable
  • Modes of Operation: Heat, Cool, Auto, Off, Emergency Heat

Stages and Program Type

  • Stages: Up to 2 Heat/2 Cool
  • Program Type: Manual / Not Programmed

Smart Home and Connectivity

  • Smart Home Integration: No
  • Bluetooth Specifications: Not Applicable
  • WiFi: No
  • WiFi Specifications: Not Applicable
  • Z-Wave Specifications: Not Applicable
  • RedLINK: No

Display and Interface

  • Display Type: LCD Screen
  • Display Size: 3.75 sq in
  • Touchscreen: No
  • Display Language: English
  • Displayed Information: Indoor Temperature, Status Display

Energy and Efficiency

  • Energy Star Certified: No
  • Power Supply: Battery, Hardwired
  • Power Supply Frequency: 50 Hz, 60 Hz
  • Battery Life: 1 Year
  • Battery Size: AA
  • Battery Type: Alkaline

Physical Specifications

  • Product Height: 3.56 in, 91 mm
  • Product Width: 5.81 in, 147 mm
  • Product Depth: 1 in, 38 mm
  • Color: Premier White®
  • Mounting Type: Horizontal Mount
  • Mounting Location: Wall, Internal
  • Switch Type: Relay

Temperature and Accuracy

  • Set point Temperature (Max): Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
  • Set point Temperature (Min): Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
  • Differential Temperature: ± 1 °F, ± 0.5 °C
  • Temperature Accuracy: 0.5°C, 1°F
  • Interstage Differential Temperature: 1 to 1.5 F Multistage models only

Additional Features and Requirements

  • Alerts and Reminders: Battery Replacement
  • Occupancy Sensor: Not Applicable
  • Includes: Thermostat, Screws, Literature
  • Sensor Type: Thermistor
  • Fan Function: Cycled, Continuous
  • Clock Type: None
  • Earthing: Not Applicable
  • Shipping and Storage Temperature (Max): 120 °F, 49 °C
  • Shipping and Storage Temperature (Min): -20 °F, -29 °C
  • Warranty: 5 Years

Resources

TH5220D1029 Operating Instructions
Note: TH5220D1029 is a replacement for TH5110D
See All Honeywell Thermostats

Warning

  • Must be installed by a qualified electrician
  • Ensure power is off prior to any maintenance


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003411
Brand Honeywell
Shipping Weight 1.0000kg
