DESCRIPTION

This replacement is compatible with HONEYWELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

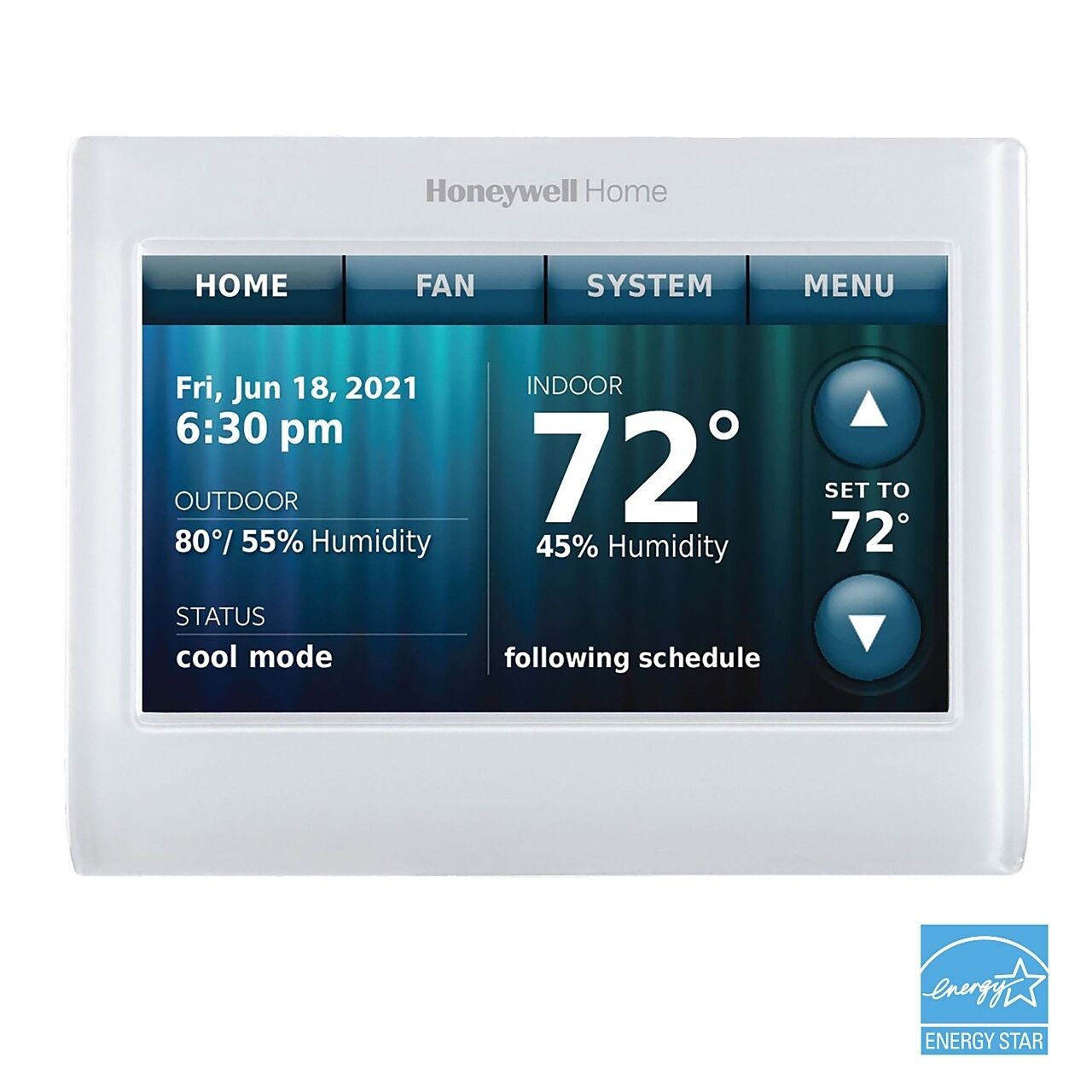

Title: TH9320WF3003 Honeywell Wi-Fi Smart Colour Thermostat

Brand: Honeywell

MPN: TH9320WF3003

SKU Number: HTN_0000665

Notes:

TH9320WF3003 Honeywell Wi-Fi Smart Colour Thermostat

Application and Features

  • Application: Heat Only, Gas or Oil, Electric Heat, Hot water, Steam, 750 mV
  • Product Features: Adjustable Temperature Scale: Standard selection of 40 to 90F or Garage selection of 35 to 90F
  • Features: Utility Rewards, Backlit Display, WiFi, ENERGY STAR Certified

Stages and Modes of Operation

  • Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
  • Modes of Operation: Heating, Cooling

Smart Home and Connectivity

  • Smart Home Integration: Yes
  • WiFi: Yes
  • WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
  • Bluetooth Specifications: Not Applicable
  • Z-Wave: No
  • Z-Wave Specifications: Not Applicable
  • RedLINK: No

Display and Interface

  • Display Type: Touch Screen
  • Display Size: 8.06 sq in
  • Touchscreen: Yes
  • Display Language: English, French, Spanish
  • Displayed Information: Down Button, Indoor Temperature, Outdoor Humidity, Status Display, Time, Up Button, Program, Backlit, Fan, Home Button, Menu Button
  • Backlight Options: Adjustable

Energy and Efficiency

  • Energy Star Certified: Yes
  • Frequency: 50 Hz, 60 Hz

Environmental and Operating Conditions

  • Ambient Operating Temperature (Max): 120 °F, 48.9 °C
  • Ambient Operating Temperature (Min): 32 °F, 0 °C
  • Differential Temperature: ± 1 °F, ± 0.5 °C
  • Operating Relative Humidity (Max): 90% RH
  • Operating Relative Humidity (Min): 5% RH

Physical Specifications

  • Product Height: 4.69 in, 74 mm
  • Product Width: 2.88 in, 74 mm
  • Product Depth: 1.13 in, 28 mm
  • Color: Premier White®
  • Mounting Type: Vertical Mount
  • Clock Type: Year Clock

Temperature Settings

  • Set point Temperature (Max): Heat: 32.2 °C, Heat: 90 °F, Cool: 37.2 °C, Cool: 99 °F
  • Set point Temperature (Min): Heat: 4.4 °C, Heat: 40 °F, Cool: 10 °C, Cool: 50 °F

Other Specifications

  • Occupancy Sensor: Not Applicable
  • Earthing: Not Applicable
  • Fan Function: On, Auto, Circulating
  • Demand Response: Yes
  • Bulb Diameter: Not Applicable
  • Bulb Length: Not Applicable
  • Capillary Diameter: Not Applicable
  • Capillary Length: Not Applicable
  • Warranty: 5 Years

Resources

TH9320WF3003 User Guide
TH9320WF3003 Installation Guide

TH9320WF3003 Mobile APP

See All Honeywell Thermostats

Warning

  • Must be installed by a qualified electrician
  • Ensure power is off prior to any maintenance


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0000665
Brand Honeywell
Shipping Weight 1.0000kg
