DESCRIPTION

This Drain Pump Part(s) replacement is compatible with Washers.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

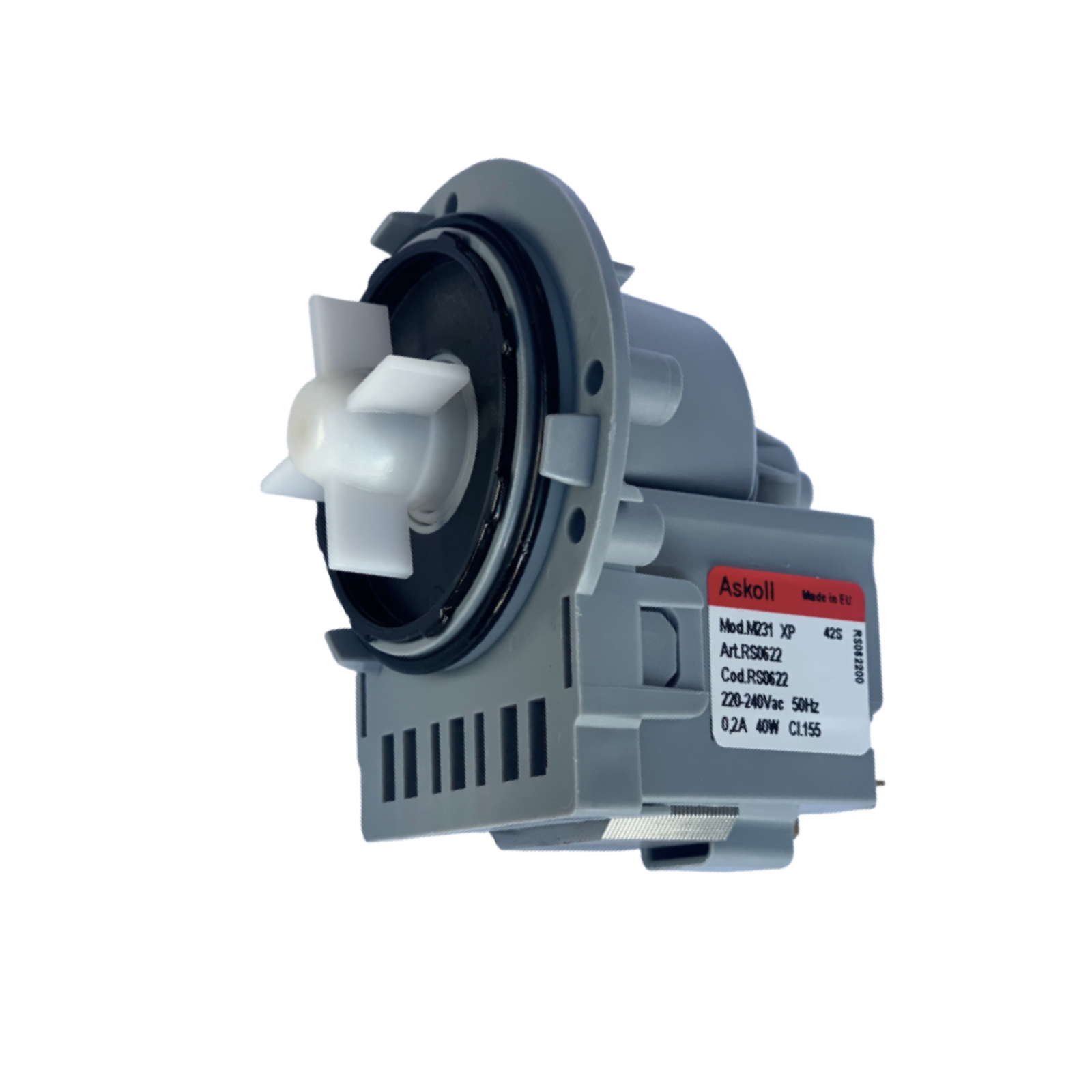

Title: Universal Washing Machine Water Drain Pump - DC31-30008D | Suits: LG: Top Front load washing machines

Type: Drain Pump Part(s)

Suitable For: Washing Machine

Compatible Brands: Universal

Compatible Models:
✔ LG:
✔ Top
✔ Front
✔ load
✔ washing
✔ machines

Part Number: UNI087

Notes:

3 - 5 screw point

Simple Installation / Changeover

New Terminals included in case plugging is different.

Models this part suits:

LG: Top & Front load washing machines and some dishwashers

Samsung: Top & Front load washing machines and some dishwashers

Simpson: Some Top & Front load washing machines

Asko: Most Front load washing machines

Ariston: Most Front load washing machines

Samsung Part#: DC31-30008D, DC31-00030A, DC31-00180A

Samsung: J845, WF7708N6W1, J1043IW1XSA, J1045IWXSA, J845IWXSA, P1003JIWXSA, SW68ASPIWXSA, WD7704C8CXSA, WF7700N6W1XSA, WF7708N6W1XSA, WF7708N6WXSA, Q1435GW1/XSA, J1045VCS, B1045IW-XSA, B1245AVW-XSA, B1245IW/XSA, C1235IW/XSA, J1045IW-XSA, J1055IW/XSA, J1255IW/XSA, J1255AVIW/XSA, P843GW, J1455AVIW1/XSA, C835IW/XSA, C835, WD-J1255CI/XSA, J1045AVWI-XSA, J1045IW1/XSA, WF7700N6W1/XSA, SW55APP2IW/XSA, SW80USP, SW75V9WIP/XSA, WD7704C8C/XSA, WF7708N6W/XSA, SW61ASPIW/XSA, P1203JIW/XSA, B1045 – B1045IW/XSA, B1245AV – B1245AVW/XSA, B1245 – B1245IW/XSA, C1235AV – C1235AVW/XSA, C1235 – C1235IW/XSA, C835 – C835IW/XSA, J1043 – J1043IW/XSA – J1043IW1/XSA – J1043IW1/YMI, J1045AV – J1045AVW/XSA – J1045AVW1/XSA – J1045AVW1/YMI, J1045 – J1045IW/XSA – J1045IW/YMI – J1045IW1/XSA, J1055 – J1055IW/XSA – J1055IW1/XSA, J1255AV – J1255AVIW/XSA, J1255 – J1255IW/XSA, J1455AV – J1455AVIW/XSA – J1455AVIW1/XSA, J1455AVIW1/YMI – J1455 – J1455IW/XSA, J843 – J843IW/XSA, J845 – J845IW/XSA – J845IW/YMI – J845IW1/XSA, P1003J – P1003JIW/XSA ,P1203J – P1203JIW/XSA – P1203JIW/YMI ,SW50ASP – SW50ASPIW/XSA – SW50ASPIW/YMI, SW50USPIW/XSA – SW51ASP – SW51ASPIW/XSA – SW51ASPIW/YMI, SW52ASP – SW52ASPIW/XSA – SW52ASPIW/YMI, SW55APP3 – SW55APP3IW/XSA – SW55APP3IW/YMI, SW55APP – SW55APPIW/XSA – SW55APPIW/YMI, SW55USPIW/XSA – SW56APP – SW56APPIW/XSA – SW56APPIW/YMI, SW57APP – SW57APPIW/XSA,SW60ASP – SW60ASPIW/XSA – SW60ASPIW/YMI, SW61ASP – SW61ASPIW/XSA – SW61ASPIW/YMI, SW62ASP – SW62ASPIW/XSA – SW62ASPIW/YMI, SW65ASP2 – SW65ASP2IW/XSA – SW65ASP2IW/YMI, SW65ASP – SW65ASPIW/XSA – SW65ASPIW/YMI, SW65ASPT – SW65ASPTIW/YMI, SW65USPIW/XSA – SW65V9WIP/XSA – SW66ASP – SW66ASPIW/XSA – SW66ASPIW/YMI, SW674ASP – SW674ASPIW/XSA, SW674AS – SW674ASPIW/YMI, SW68ASP – SW68ASPIW/XSA – SW68ASPIW/YMI, SW70SPWIP/XSA – SW75USPIW/XSA – SW75V9WIP/XSA , SW80SPWIP/XSA – SW80USPIW/XSA – SW81ASP – SW81ASPIW/XSA – SW81ASPIW/YMI, SW82ASP – SW82ASPIW/XSA, SW85ASP – SW85ASPIW1/XSA, SWT65B1P – SWT65B1PIW/XSA, SWT65D2P – SWT65D2PIW/XSA ,SWT90C1P – SWT90C1PIW/XSA, WA10J7700GW/SA – WA10J8700GP/SA – WA10J8700GW/SA, WA5471ABP/XSA – WA5471ABW/XSA ,WA65F5S2URW/SA, WA70F5G4DJW/SA – WA70F5S2URW/SA – WA75F5S6DRA/SA – WA75G9TIP/XSA ,WA80F5G4DJW/SA – WA80R3 – WA80R3Q3EW/YGI, WA85F7S6DRA/SA – WA85GWGIP/XSA – WA85GWWIP/XSA, WD-J1255C – WD-J1255CI/XSA – WD-J1255CI/YMI, WD0754W8E/XSA,WD10F8K9ABG/SA – WD1102XVM/XSA, WD7704C8C/XSA,WD8122CVB/XSA – WD8122CVW/XSA,WD8704EJA/XSA – WD8704EJA1/XSA,WF0754W7V/XSA – WF0754W7V1/XSA,WF0854W8E/XSA – WF0854W8E1/XSA,WF1104XAC/XSA – WF1104XBC – WF1104XBC/XSA,WF7700N6W/XSA – WF7700N6W1/XSA – WF7704S8V/XSA – WF7708N6W/XSA – WF7708N6W1/XSA,WF8750LSW/XSA – WF8750LSW – WF8750LSW1/XSA,WF8802RPA/XSA – WF8802RPF/XSA – WF8802RPF – WF8802RPF1/XSA, WF8802RSW/XSA, WF8802RSW – WF8802RSW1/XSA,WF9854RWE/XSA – WF9854RWE1/XSA

Fisher Paykel: 1907855, WH7560J, WH7560J3, 93249, HWF10DW1, WD7560P1, WD8560F1, WH7560J2, WH7560J3, WH7560P2, WH8060F1, WH8060J3, WH8060P2, WH8560F1, WH8560J3, WH8560P2, WH9060J3, WM1280J2, WM1480P2, WM1490F1, WH7560J3

Haier: H0022150033660401G


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU PTH_0001945_1
Brand Universal
Shipping Weight 1.0000kg
