DESCRIPTION

This replacement is compatible with CPS PRODUCTS Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: Vacuum Pumps | VP4DE Pro-Set® vacuum pump

Brand: CPS Products

Type: Parts & Accessories → Tools → Vacuum Pumps

MPN: VP4DE

SKU Number: KRB_0009140

Notes:

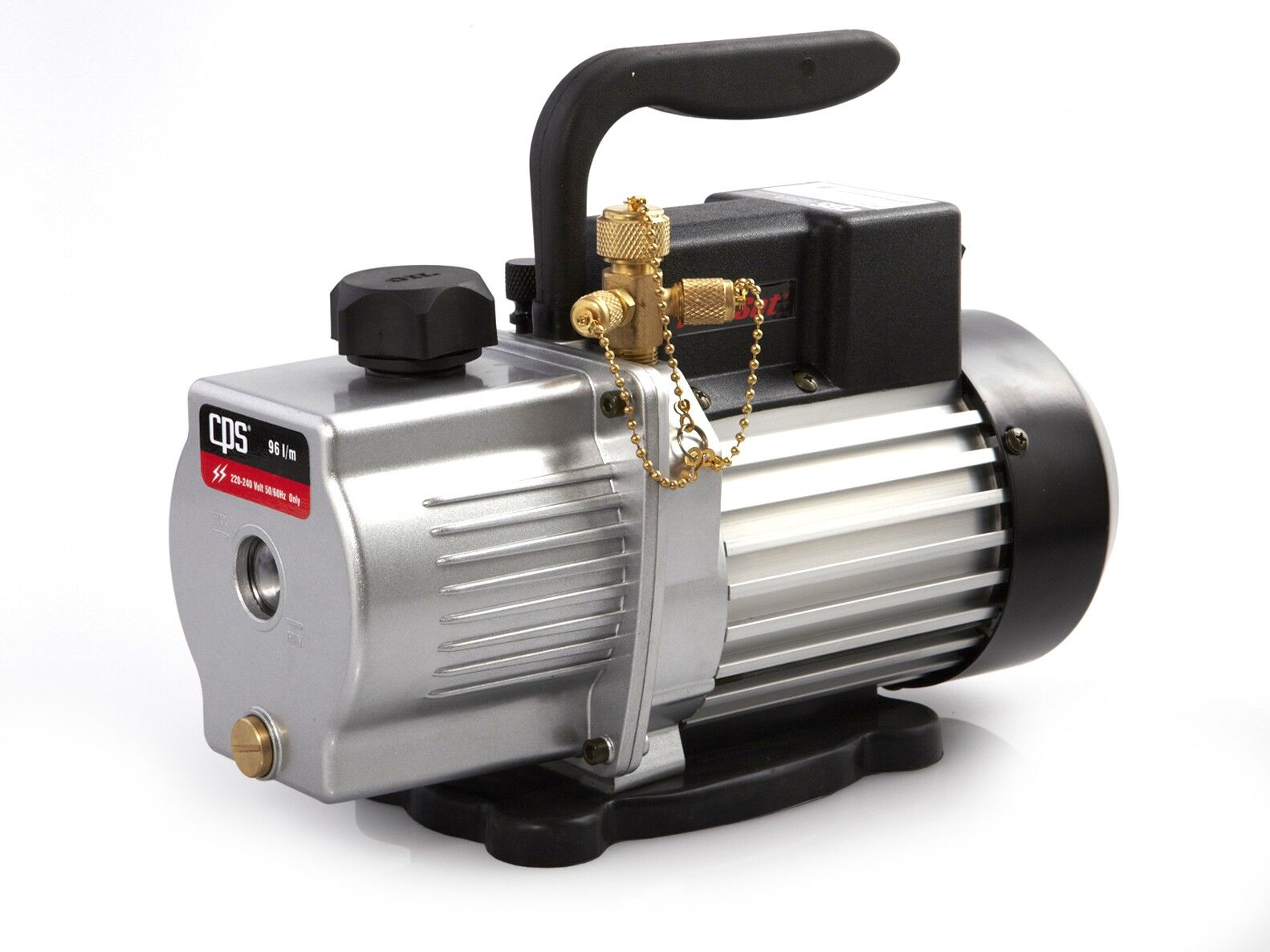

The VP4DE Pro-Set® vacuum pump is a 4 CFM, 2 stage unit with a versatile dual voltage 1/2HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

Key Features:

  • Dual voltage operation 220-240V 50/60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for ¼ …œ" and ½ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
  • Solid rubber base provides extreme shock resistance
  • Sure grip handle ergonomically designed for superior comfort and portability


Specifications:

Stage: 2

Motor Size (HP) RPM @ 50/60Hz: 1/2 (HP)2880/3440

Dimensions (Inches): 13.1 x 5.5 x 10

Weight: 22.1 lb / 10.0 kg

Operating Temperature Range: 0C (32F) to 52C (125F)

Power Source: 220-240V 50/60Hz

Ultimate Vacuum: as low as 10 Microns

Oil Capacity: 15.5 oz / 450 ml

Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle

Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse

Control System: ON-OFF power switch

Free Air Displacement: 4 CFM @ 60Hz, 96l/m @ 50Hz

Intake Fittings: ¼ SAE, … SAE, and ½ ACME

Gas Ballast Valve: Yes
