DESCRIPTION

This replacement is compatible with CPS PRODUCTS Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

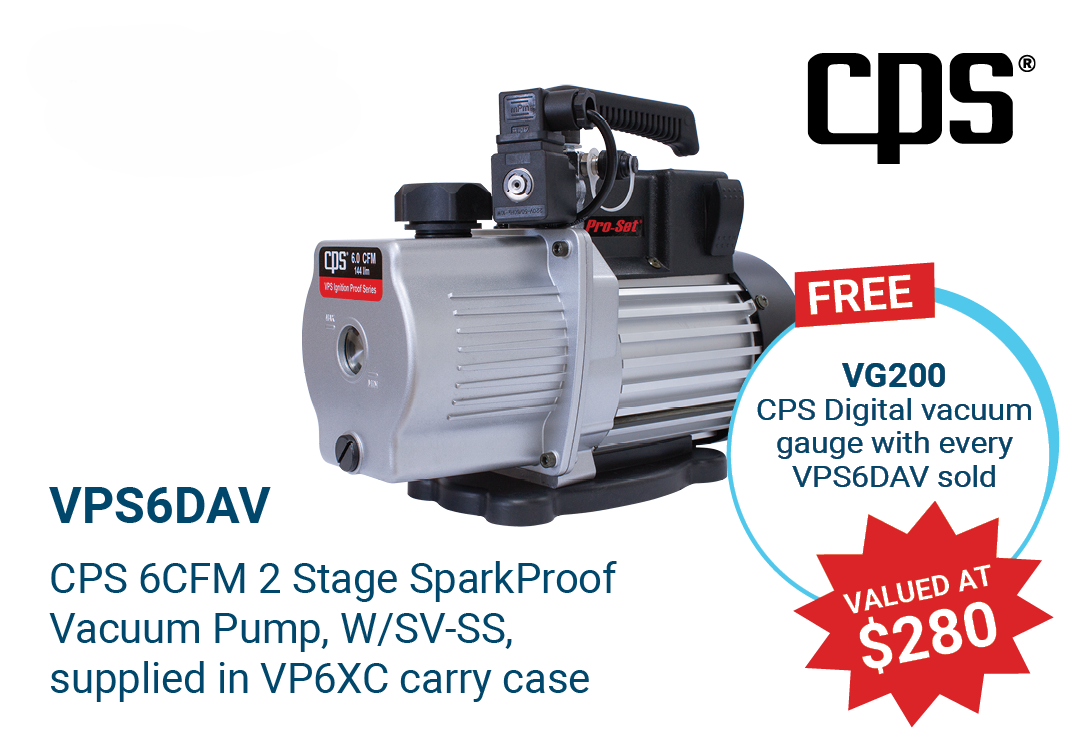

Title: Vacuum Pumps | VPS6DAV Pro-Set® 6 CFM Sparkless Ignition Proof Vacuum Pump

Brand: CPS Products

Type: Parts & Accessories → Tools → Vacuum Pumps

MPN: VPS6DAV

SKU Number: KRB_0009160

Notes:

Includes Inlet Solenoid Valve

Sparkless (Ignition Proof) Vacuum Pump Series
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

KEY FEATURES:

  • Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
  • For use on refrigeration systems utilizing Class A1 (nontoxic, non-flammable), Class A2L
  • (nontoxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
  • Air cooled, thermally protected motors encased in a durable aluminum housing
  • Oil filled rotary vacuum pump cartridge construction
  • Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
  • Large double sealed oil sight glass
  • Sealed start relay
  • Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
  • Ignition proof ON-OFF switch
  • Rubber lined handle, skid-resistant rubber base
  • Gas ballast valve for deeper vacuum
  • UL listed

VPS6DU SPECIFICATIONS
Stage: 2
Ultimate Vacuum: 10 Microns
Refrigerant Class: A1, A2, A3
Dimensions: 13.1 x 5.5 x 10
Weight: 22.5 lb (10.2 kg)
Free Air Displacement: 6 CFM @ 60 Hz
Motor Size (HP)RPM @ 50 / 60 Hz: 1/2 HP 3440 RPM
Voltage: 115V, 60Hz
Power Connection to Pump: 10’ Hardwired
Oil Capacity: 16 oz (470 ml)


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU KRB_0009160
Brand CPS Products
Shipping Weight 1.0000kg
