This replacement is compatible with FIELDPIECE Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

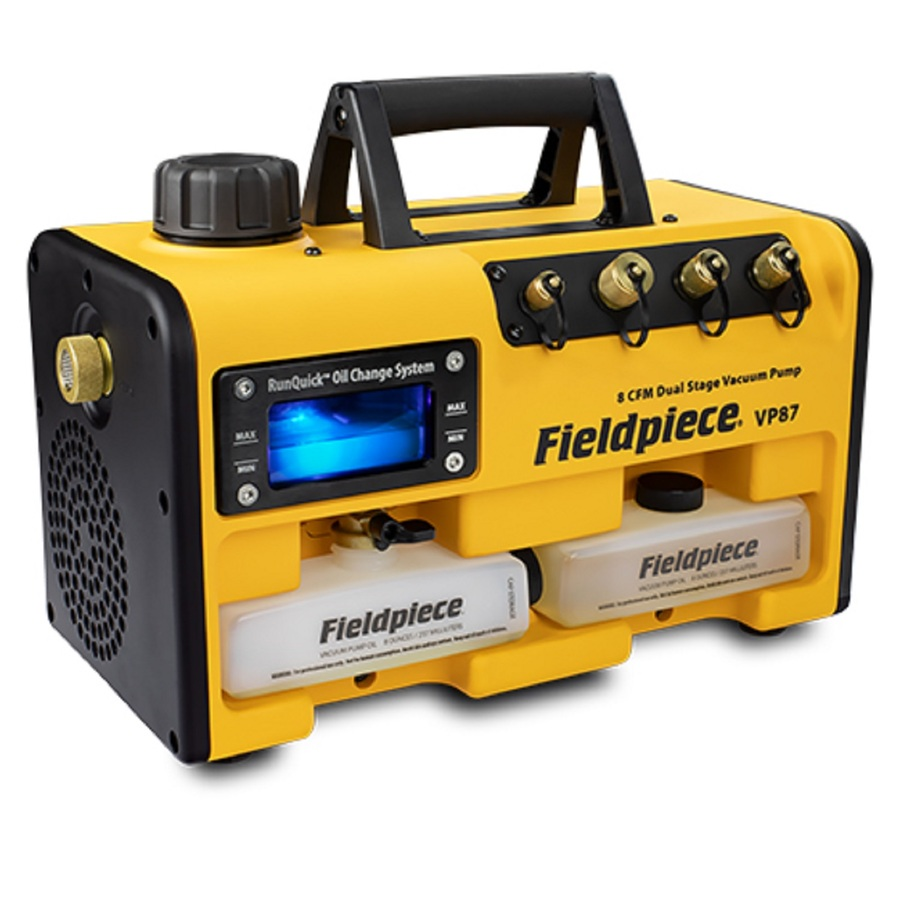

Title: VP87INT Fieldpiece [ 227 l/m ] Vacuum Pump for Air Conditioning & Refrigeration

Brand: Fieldpiece

MPN: VP87INT

SKU Number: HTN_0003643

Notes:

Fieldpiece VP87INT high efficiency Vacuum Pumps

Fieldpiece Vacuum Pumps with RunQuick™ Oil Change System - No Fuss - No Mess

• 8 CFM [227  l/m] with Variable Speed DC motor
• 15 Micron ultimate Vacuum
• Backlit oil reservoir to view condition of oil and system
• Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
• Water resistant to withstand direct rain
• Suitable for A2L class refrigerants
  •  R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

These revolutionary pumps make Evacuation easier and faster.

Fieldpiece is leading the charge in properly performing system evacuation with its new vacuum pumps with RunQuick™ Oil Change System. Available in an 6, 8 & 10 cfm   - these revolutionary pumps make evacuation easier and faster.

Good oil is a key ingredient of every evacuation. Clearly view your pump oil through the huge oil reservoir window to see the condition of the oil, and the system. When it’s time to change the oil, it’s quick, clean, and easy. With the RunQuick oil change system you can replace the oil in under 20 seconds, even while the pump is running without losing vacuum. Plus the extra wide base helps prevent tipping and spilling oil.

Four in-line ports give you tidy hose routing for three different size hoses. 1/4" : 3/8" : 1/2"

Place the power cord on the handle for tangle-free storage and easy lifting.

​Excludes Consumables such as Oil, Leads, Filters, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED

• VP87INT Vacuum Pump
• 2 x 8oz RunQuick Oil Containers [Filled]
• Operator’s Manual

Specifications

• Flow Rate: 8CFM [227 l/m]
• Oil Capacity: 8oz (237mL)
• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
• Fieldpiece part numbers: OIL8X3, OIL32, OIL128
• Oil Backlight: Blue LED
• Oil Drain: Ball valve
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
• Compressor: Rotary vane, two stage
• Motor: 3/4 HP Brushless DC
• RPM: 2500
• Power Source: 240 VAC @ 50 Hz 1 phase
• Nominal Current Draw: 6.0 AAC
• Ultimate Vacuum at Input Ports: 15 microns
• Dimensions: 201 mm x 296 mm x 406 mm
• Weight: 12.3 kg
• Operating Environment: -1.1°C to 50°C
