DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

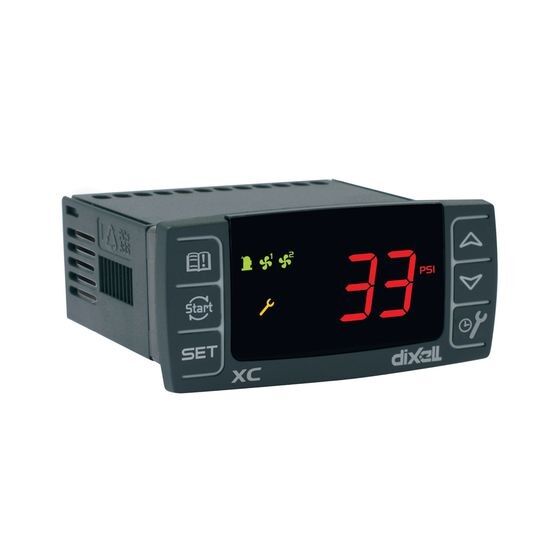

Title: XC10CX-5B1OH Digital Controller DIXELL

Brand: Dixell

MPN: XC10CX-5B1OH

SKU Number: HTN_0003745

Notes:

Brand:  DIXELL

Model:  XC10CX-5B1OH

CONDENSING UNIT CONTROLLER WITH 1 COMPRESSOR

Generals

Keyboard: 6 push buttons

Power supply

110, 230Vac

Probe inputs

Suction pressure: 0÷5V - Condensing pressure: 0÷5V, NTC - Discharge temperature: PTC

Digital inputs

2 x configurable

Relay outputs

Compressor: 20A

Other

Hot Key / Prog Tool Kit output: present - Buzzer: optional

Power absorption

3.5VA max

Display

3 digits, red LED, 14,2mm high

Data storing

on the non-volatile memory (EEPROM)

Operating temperature

-10÷55 °C

Storage temperature

XC10-30CX: -30 to 85°C
XC15-35CX: -20 to 85°C

Relative humidity

20÷85% (no condensing)

Measuring and regulation range

XC10-30CX: NTC10k: -40÷110°C PTC 990ohm: -50÷150°C
XC15-35CX: NTC10k: -40÷110°C NTC86k: -40÷180°C PT1000: -40÷180°C

Resolution

0.1°C or 1°C

Accuracy (at ambient temperature)

±0.7°C ±1 digit

Features

  • Smart error pressure probe management
  • External trigger signal to enable regulation
  • Safety control of high pressure and high condensing/suction temperature
  • Designed for ON/OFF, variable speed and digital compressors (XC15-35CX)
  • Advanced condenser fan control (internal triac up to 2A – external driver up to 60A) (XC15-35CX)
  • Direct on-board control for electronic fans (XC15-35CX)
  • Energy consumption optimization through the load request modulation (XC15-35CX)
  • Advanced energy saving features thanks to optimized management both for compressors and fans (XC15-35CX)
  • Real time condensing unit monitoring (XC15-35CX)
  • Direct access to alarm menu, working time and load activation
  • Hot Key for quick and easy programming

Download XC10CX-5B10H
