DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

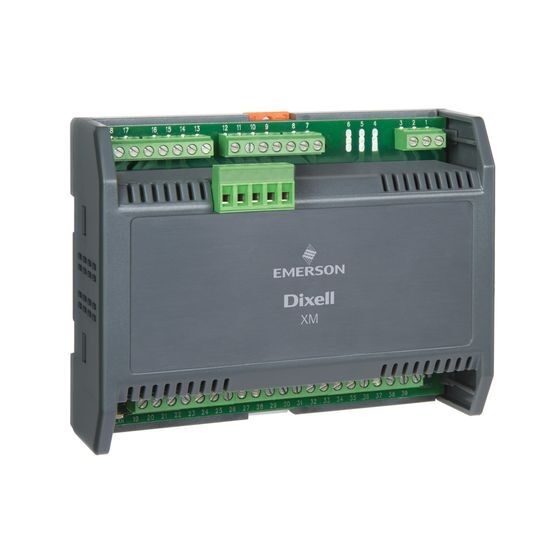

Title: XM669K-5N1C0 Digital Controller DIXELL

Brand: Dixell

MPN: XM669K-5N1C0

SKU Number: HTN_0003764

Notes:

Brand: DIXELL

Model: XM669K-5N1C0

ADVANCED MULTIFUNCTION CONTROLLER FOR NT AND LT VENTILATED APPLICATIONS WITH ON/OFF ELECTRONIC VALVE MANAGEMENT

Generals

Keyboard: 6 push buttons (on CH660, T660H)

Power supply

110, 230Vac

Probe inputs

Thermostat: NTC, Pt1000 - Defrost: NTC, Pt1000 - Display: NTC, Pt1000 - AUX: NTC, Pt1000 - Suction pressure: NTC/Pt1000/4÷20mA/0÷5V - Condesing pressure: NTC/Pt1000

Digital inputs

2 x configurable

Relay outputs

Compressor/Valve: 8A - Defrost: 16A - Fans: 8A - Light: 16A

Other

Hot Key / Prog Tool Kit output: present - Serial output: RS485 optional - 4÷20mA/0÷10V output: optional - PWM output: optional - Valve driver output: ON/OFF up to 30W - Remote display output: optional - Buzzer: on keyboard - Real time clock: present - Connection kit: XM-FC21

Power absorption

20VA max

Display

3 digits, red LED, 14,2mm high

Data storing

on the non-volatile memory (EEPROM)

Operating temperature

0÷60 °C

Storage temperature

-25÷60°C

Relative humidity

20÷85% (no condensing)

Measuring and regulation range

NTC probe: -40÷110°C
PTC probe: -50÷150°C
PT1000 probe: -100÷100°C

Resolution

0.1°C or 1°C

Accuracy (at ambient temperature)

±0.5°C ±1 digit

Features

  • Efficient case control thanks to device synchronization (up to 8) by local LAN
  • Optimized management of stepper or pulse electronic expansion valves
  • Low environmental impact (CO2, R407C and R407F compatible)
  • Energy saving through case optimization with auto-adaptive control of superheat
  • Energy consumption reduction thanks to ECI fan management via PWM or 0÷10V output
  • Anti-sweat heater management through a ”DEW POINT”
  • Virtual probe management
  • Keyboard with direct access to the main functions
  • Internal Real Time Clock
  • Hot Key for quick and easy programming

Download XM669K


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003764
Brand Dixell
Shipping Weight 1.0000kg
