DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

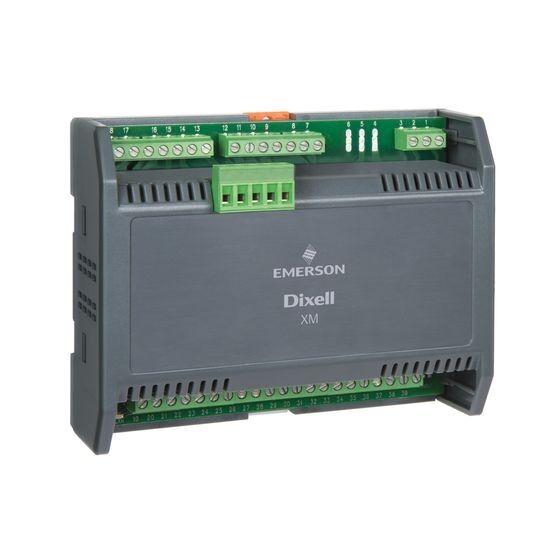

Title: XM679K-5C1C2B Digital Controller DIXELL

Brand: Dixell

MPN: XM679K-5C1C2B

SKU Number: HTN_0003766

Notes:

Brand: DIXELL

Model: XM679K-5C1C2B

ADVANCED MULTIFUNCTION CONTROLLER FOR N.T. AND L.T. VENTILATED APPLICATIONS WITH AUXILIARY AND ALARM OUTPUTS AND ON/OFF

Generals

Keyboard: 6 push buttons (on CH660, T660H)

Power supply

110, 230Vac

Probe inputs

Thermostat: NTC, Pt1000 - Defrost: NTC, Pt1000 - Display: NTC, Pt1000 - AUX: NTC, Pt1000 - Suction pressure: NTC/Pt1000/4÷20mA/0÷5V - Condesing pressure: NTC/Pt1000

Digital inputs

3 x configurable

Relay outputs

Compressor/Valve: 5A - Defrost: 16A - Fans: 8A - Light: 16A - Alarm: 8A - AUX: 8A

Other

Hot Key / Prog Tool Kit output: present - Serial output: RS485 optional - 4÷20mA/0÷10V output: optional - PWM output: optional - Valve driver output: ON/OFF up to 30W - Remote display output: optional - Buzzer: on keyboard - Real time clock: present - Connection kit: XM-FC21

Power absorption

20VA max

Display

3 digits, red LED, 14,2mm high

Data storing

on the non-volatile memory (EEPROM)

Operating temperature

0÷60 °C

Storage temperature

-25÷60°C

Relative humidity

20÷85% (no condensing)

Measuring and regulation range

NTC probe: -40÷110°C
PTC probe: -50÷150°C
PT1000 probe: -100÷100°C

Resolution

0.1°C or 1°C

Accuracy (at ambient temperature)

±0.5°C ±1 digit

Features

  • Efficient case control thanks to device synchronization (up to 8) by local LAN
  • Optimized management of stepper or pulse electronic expansion valves
  • Low environmental impact (CO2, R407C and R407F compatible)
  • Energy saving through case optimization with auto-adaptive control of superheat
  • Energy consumption reduction thanks to ECI fan management via PWM or 0÷10V output
  • Anti-sweat heater management through a ”DEW POINT”
  • Virtual probe management
  • Keyboard with direct access to the main functions
  • Internal Real Time Clock
  • Hot Key for quick and easy programming

Download XM679K
