DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

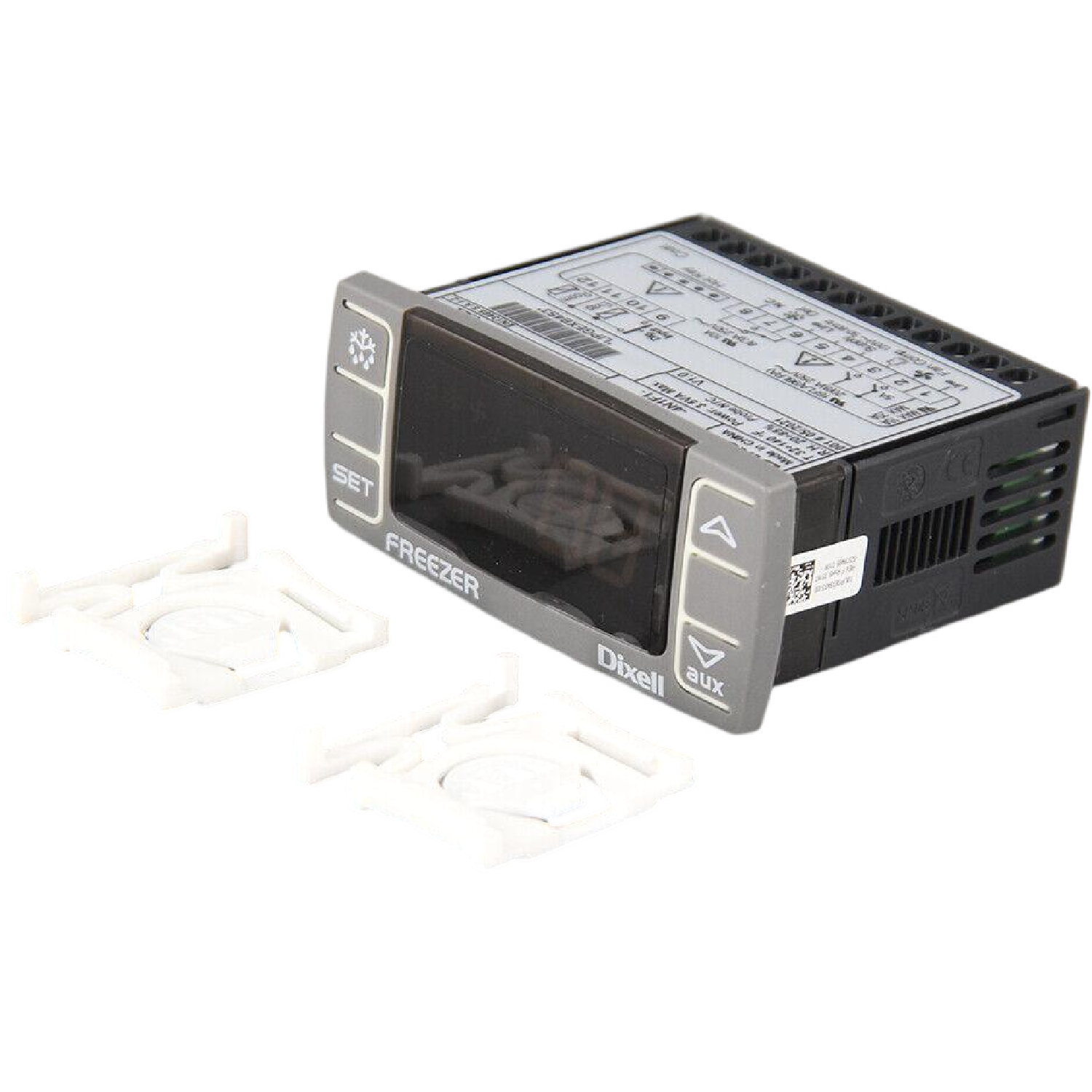

Title: XR03CX-5N1C0 DIXELL Digital thermostat auxiliary controller for Friger

Brand: Dixell

MPN: XR03CX-5N1C0

SKU Number: HTN_0003769

Notes:

Brand:  DIXELL

Model: XR03CX-5N1C0  Built-in buzzer

Item specifics

The XR03CX, in 32x74x50 mm short format, is microprocessor based controller suitable for applications on normal temperature refrigerating units. It provides two relay output: one for compressor and the other one for alarm signalling or as auxiliary output. It provides an NTC probe input and a digital input for alarm signalling, for switching the auxiliary output or for start defrost. The instrument is fully configurable through special parameters that can be easily
programmed through the keyboard or the by HOTKEY.

Suitable for appliances including

suitable for applications on normal temperature refrigerating units

Specification

Producer: DIXELL
Type: XR03CX-5N1C1  Built-in buzzer
Mounting Measurements: 71mm x 29mm
Built-in Depth: 56mm
Supply: 230V
Voltage Type: AC
Probe Type: NTC (probes not included)
Number of Relay Outputs: 1
Relay Output 1: NO-20A(8)
Input: 1NTC
Kind of Protection: IP54
Version: Defrosting Function / Time Control
Measuring Range: -40°C up to +110°C

Display: 2½ Digit



Defrost

Defrost is performed through a simple stop of the compressor. Parameter id controls the interval between defrost cycles, while its length is controlled by parameter Md.

SAFETY PRECAUTIONS

  • Check the supply voltage is correct before connecting the instrument.
  • Do not expose to water or moisture: use the controller only within the operating limits avoiding
  • sudden temperature changes with high atmospheric humidity to prevent formation of condensation.
  • Warning: disconnect all electrical connections before any kind of maintenance.
  • Fit the probe where it is not accessible by the End User. The instrument must not be opened.
  • Consider the maximum current which can be applied to each relay
  • Ensure that the wires for probes, loads and the power supply are separated and far enough from each other, without crossing or intertwining.
  • In case of applications in industrial environments, the use of mains filters (our mod. FT1) in parallel with inductive loads could be useful.




Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003769
Brand Dixell
Shipping Weight 1.0000kg
