DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: XR10CX-5N1C1 Digital Controller DIXELL

Brand: Dixell

MPN: XR10CX-5N1C1

SKU Number: HTN_0003772

Notes:

Brand:  DIXELL

Model:  XR10CX-5N1C1

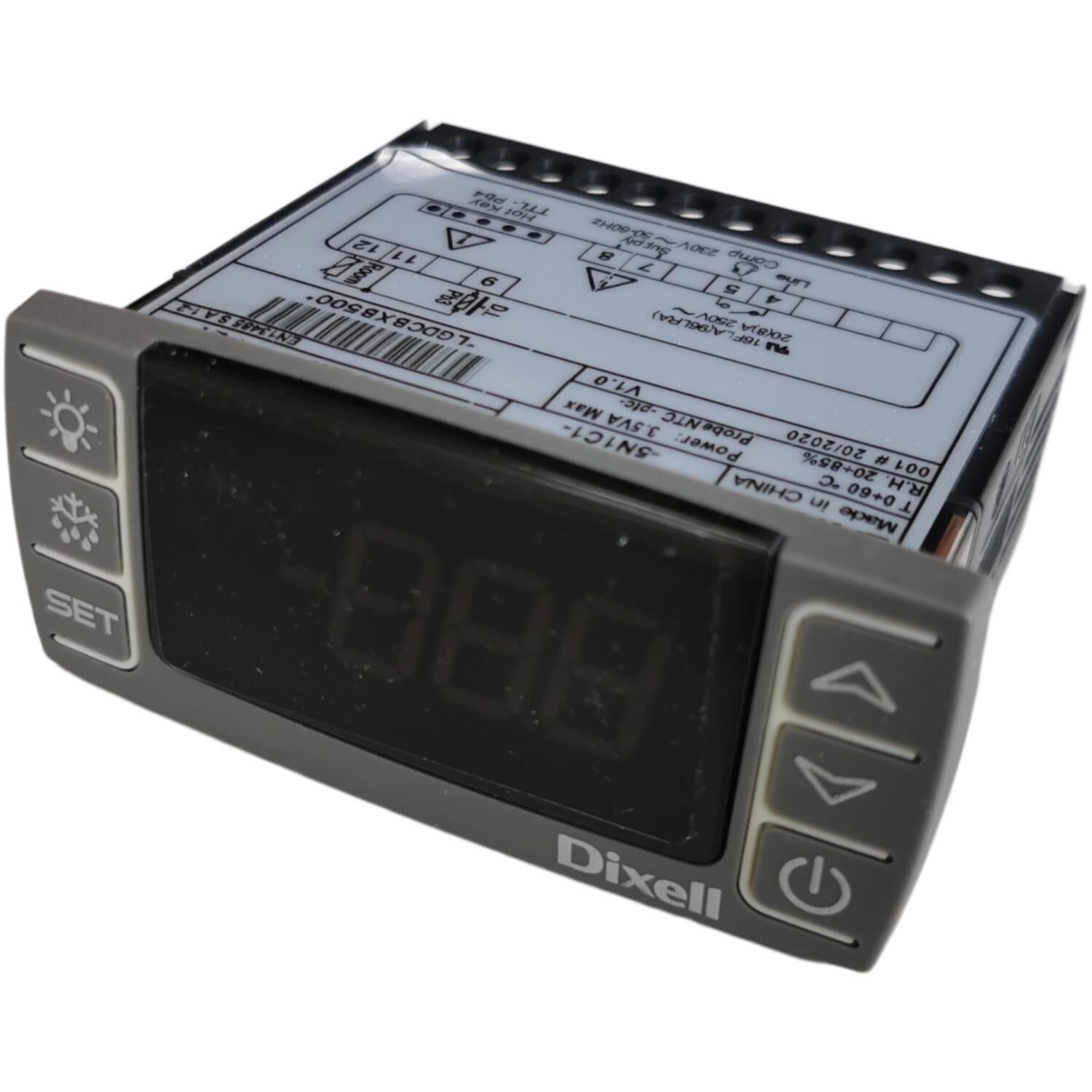

Digital Controller DIXELL XR10CX-5N1C1

GENERAL DESCRIPTION

Digital Controller DIXELL XR60CX-5N1C1

1.Innovative digital controllers dedicated to heat and M.T.-L.T. refrigeration

2.Easy and intuitive programming mode

3.Display with icons and integrated measurement units

4,On/off key

5.Plastic front frame with "cut out" "WING" compatible

6.Up to 2 light switches

7.Energy saving cycles through digital input

8.Fast freezing with dedicated set point

9.Regulation stop through auxiliary probe

10.Regulation restart with door open alarm

11.Temperature or HACCP Max and Min function

12.Configurable digital input also as probe

13.Virtual probe management

14.Conderser temperature management to prevent critical plant situations

15.Hot key connector for a quick and easy programming

16.Serial line connection to monitoring systems

17.Connection for X-REP remote display(alternative to TTL output)

18.3VA max power absoraption

19.Display with red LED(10,5mm high) and icons

XR20CX : Digital Dixell controller for N.T. with "off cycle" defrost

XR30CX: Digital Dixell controller for N.T. with "off cycle" defrost and additional configurable reply

XR40CX: Digital Dixell controller for M.T. and L.T. with electrical or hot gas defrost

XR60CX: Digital Dixell controller for M.T. and L.T.  ventilated application with dual humidity function

Main technical parameters of Dixell electronic controller

FEATURES

XR20CX

XR30CX

XR40CX

XR60CX

Display:n°digits

Power supply

±3d.p.

12,24Vac/dc

24,110,230Vac

9÷40Vac*

±3d.p.

12,24Vac/dc

24,110,230Vac

9÷40Vac*

±3d.p.

12,24Vac/dc

24,110,230Vac

9÷40Vac*

±3d.p.

12,24Vac/dc

24,110,230Vac

9÷40Vac*

±3d.p.

12,24Vac/dc

Probe inputs

Thermostat

Thermostat2

Defrost

Defrost2

Condenser

NTC/PTC

NTC/PTC On HOT KEY

NTC/PTC

NTC/PTC On HOT KEY

NTC/PTC

NTC/PTC

NTC/PTC On HOT KEY

NTC/PTC

NTC/PTC

NTC/PTC On HOT KEY

NTC/PTC

NTC/PTC

NTC/PTC On HOT KEY

Digital inputs

Alarm,start defrost,AUX

Door switch,pressure switch,probe

Alarm,start defrost,AUX

Door switch, pressure switch

config

config

config

config

config

Relay outputs

Computer

Computer2

Thermostst2

Defrost

Defrost2

Fans

Light or alarm

Anti-sweat

8A,20A opt

8A,20A opt

8A

8A,20A opt

8A

8A,16A opt

8A

8A

20A

8A

8A

Other

Hot Key/Prog Tool Kit output

Remote display output

Serial output

Buzzer

Real time clock

Pres

X-REP opt

TTL

opt

Pres

X-REP opt

TTL

opt

Pres

X-REP opt

TTL

opt

Pres

X-REP opt

TTL

opt

Pres

X-REP opt

TTL

opt


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003772
Brand Dixell
Shipping Weight 1.0000kg
