DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

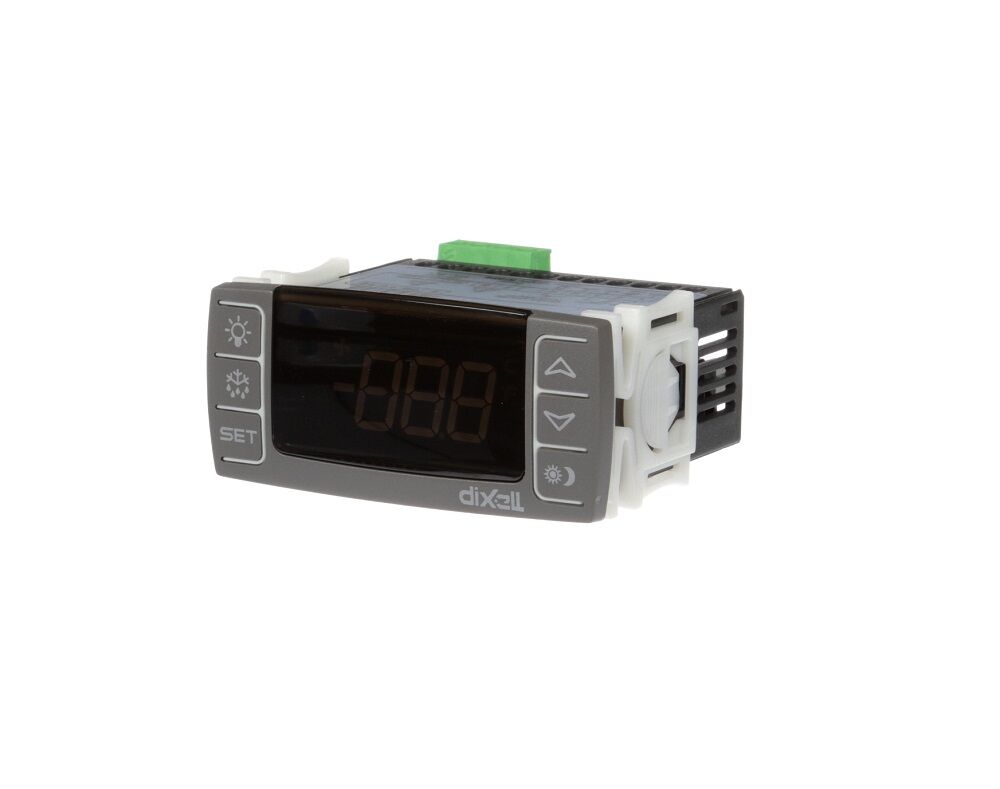

Title: XR30CX-5R1C1 Digital Controller DIXELL

Brand: Dixell

MPN: XR30CX-5R1C1

SKU Number: HTN_0003774

Notes:

Brand:  DIXELL

Model:  XR30CX-5R1C1

Digital Controller DIXELL XR30CX-5N1C1

Model XR30CX, format 32 x 74 mm, is a digital thermostat with off cycle defrost designed forrefrigeration applications at normal temperature. It provides two relay outputs, one for thecompressor, the other one can be used as light, for alarm signalling or as auxiliary output.. Itis also provided with 2 NTC or PTC probe inputs, the first one for temperature control, thesecond one, optional, to connect to the HOT KEY terminals to signal the condensertemperature alarm or to display a temperature. The digital input can operate as thirdtemperature probe. It’s provided with a Real Time Clock which allows programming of up to 6daily defrost cycles, divided into holidays and workdays. A “Day and Night” function with twodifferent set points is fitted for energy savingThe HOT KEY output allows to connect the unit, by means of the external module XJ485-CX,to a network line ModBUS-RTU compatible such as the dIXEL monitoring units of X-WEBfamily. It allows to program the controller by means the HOT KEY programming keyboard.The instrument is fully configurable through special parameters that can be easilyprogrammed through the keyboard.Medium TemperatureProbe Inputs: 2 NTC / PTC Probes (1 Thermostat, 1 Condenser)Digital Input: 1 Configurable (for Alarm, Start Defrost, Aux, Door Switch, or Pressure Switch)Relay Outputs: 1 Compressor (8A, 20A optional), 1 Light or Alarm (8A)Power Supply: 240 VAC

Download XR30CX


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS
SKU HTN_0003774
Brand Dixell
