DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

Title: XR40CX-5N1C1 Digital Controller DIXELL

Brand: Dixell

MPN: XR40CX-5N1C1

SKU Number: HTN_0001356

Notes:

Brand:  DIXELL

Model:  XR40CX-5N1C1

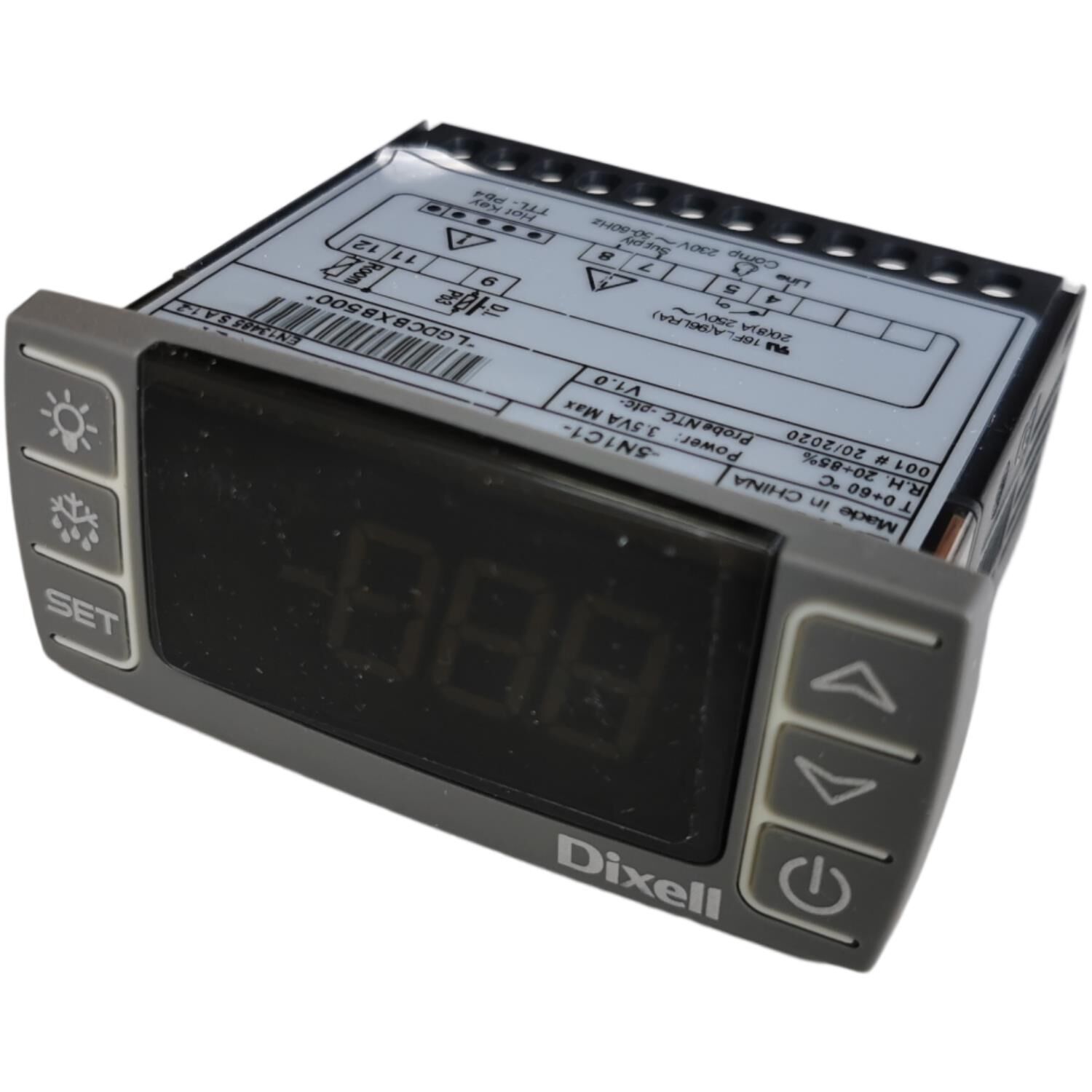

Digital Controller DIXELL XR40CX-5N1C1

GENERAL DESCRIPTION


Model XR40CX, format 32 x 74 mm, is microprocessor based controller, suitable for applications on
medium or low temperature refrigerating units. It has 2 relay outputs to control compressor and
defrost, which can be either electrical or reverse cycle (hot gas). It is also provided with three NTC or
PTC probe inputs, the first one for temperature control, the second one, to be located onto the
evaporator, to control the defrost termination temperature, the third one, optional, to connect to the
HOT KEY terminals to signal the condenser temperature alarm or to display a temperature. The
digital input can operate as fourth temperature probe.
The HOT KEY output allows to connect the unit, by means of the external module XJ485-CX, to a
network line ModBUS-RTU compatible such as the dIXEL monitoring units of X-WEB family. It
allows to program the controller by means the HOT KEY programming keyboard.
The instrument is fully configurable through special parameters that can be easily programmed
through the keyboard.

  • Low Temperature
  • Probe Inputs: 3 NTC / PTC Probes (1 Thermostat, 1 Condenser, 1 Defrost)
  • Digital Input: 1 Configurable (for Alarm, Start Defrost, Aux, Door Switch, or Pressure Switch)
  • Relay Outputs: 2 (1 Compressor (8A, 20A optional), 1 Defrost (8A))
  • Power Supply: 240 VAC

Download XR40CX


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0001356
Brand Dixell
Shipping Weight 1.0000kg
