DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

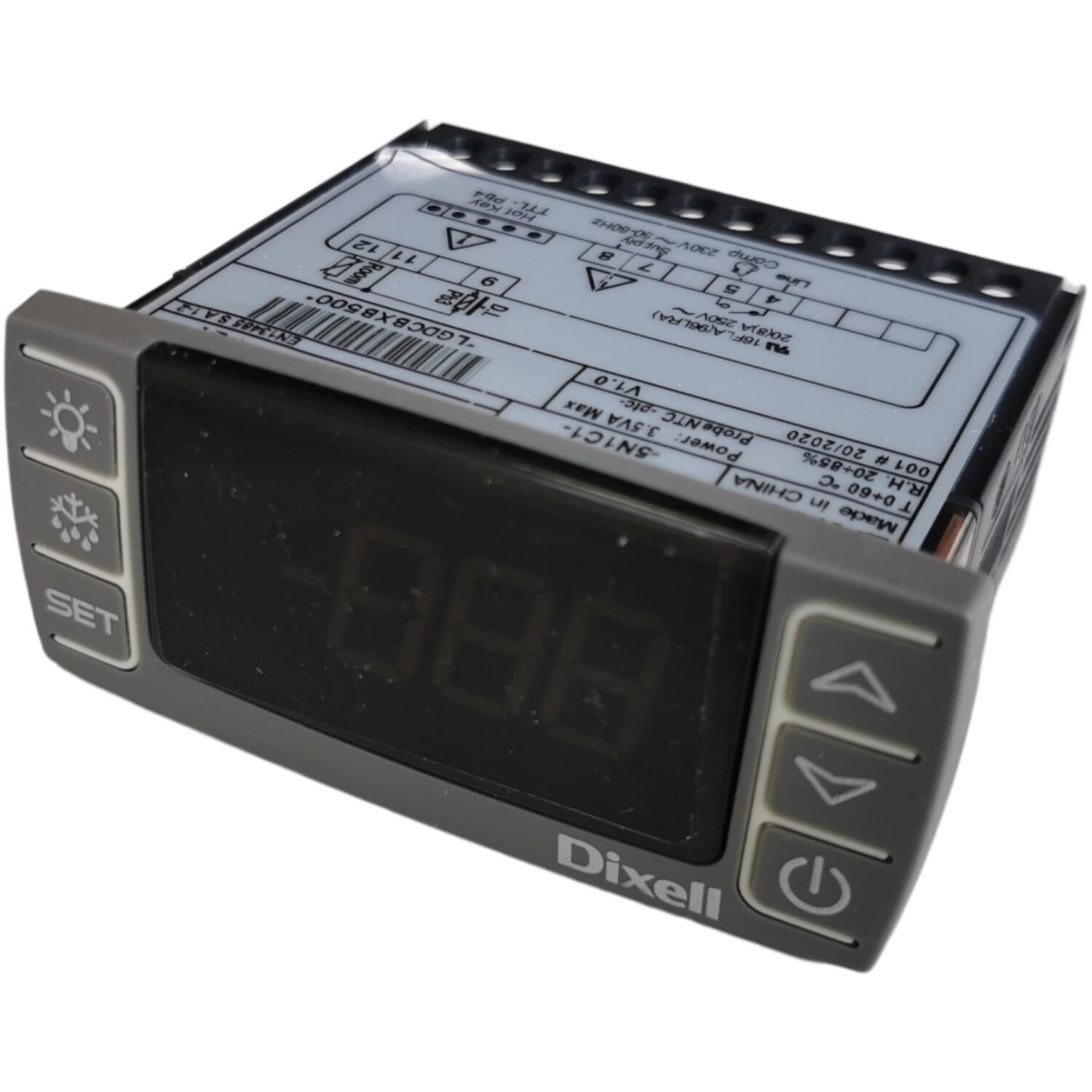

Title: XR77CX-5N7C3 Digital Controller DIXELL

Brand: Dixell

MPN: XR77CX-5N7C3

SKU Number: HTN_0003784

Notes:

Brand:  DIXELL

Model:  XR77CX-5N7C3

GENERAL DESCRIPTION

Model XR77CX, format 32x74mm, is microprocessor based controller, suitable for applications on low temperature ventilated refrigerating units. It has 4 relay outputs to control compressor, fan, defrost (which can be either electrical or reverse cycle -hot gas-) and light (configurable). It could be provided with a Real Time Clock which allows programming of up to 6 daily defrost cycles, divided into holidays and workdays. A “Day and Night” function with two different set points is fitted for energy saving. It is also provided with up to 3 NTC or PT1000 probe inputs, the first one for temperature control, the second one, to be located onto the evaporator, to control the defrost termination temperature and to manage the fan and the third one for condenser alarm management or the display. A digital input can be set to operate as fourth temperature probe. The RS485 serial output allows to connect the unit to a network line ModBUS-RTU compatible such as the Dixell monitoring units of X-WEB family. The HOT KEY receptacle allows programming the controller by means the HOT KEY programming keyboard. The instrument is fully configurable through special parameters that can be easily programmed through the keyboard. 3. CONTROLLING LOADS


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003784
Brand Dixell
Shipping Weight 1.0000kg
