DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

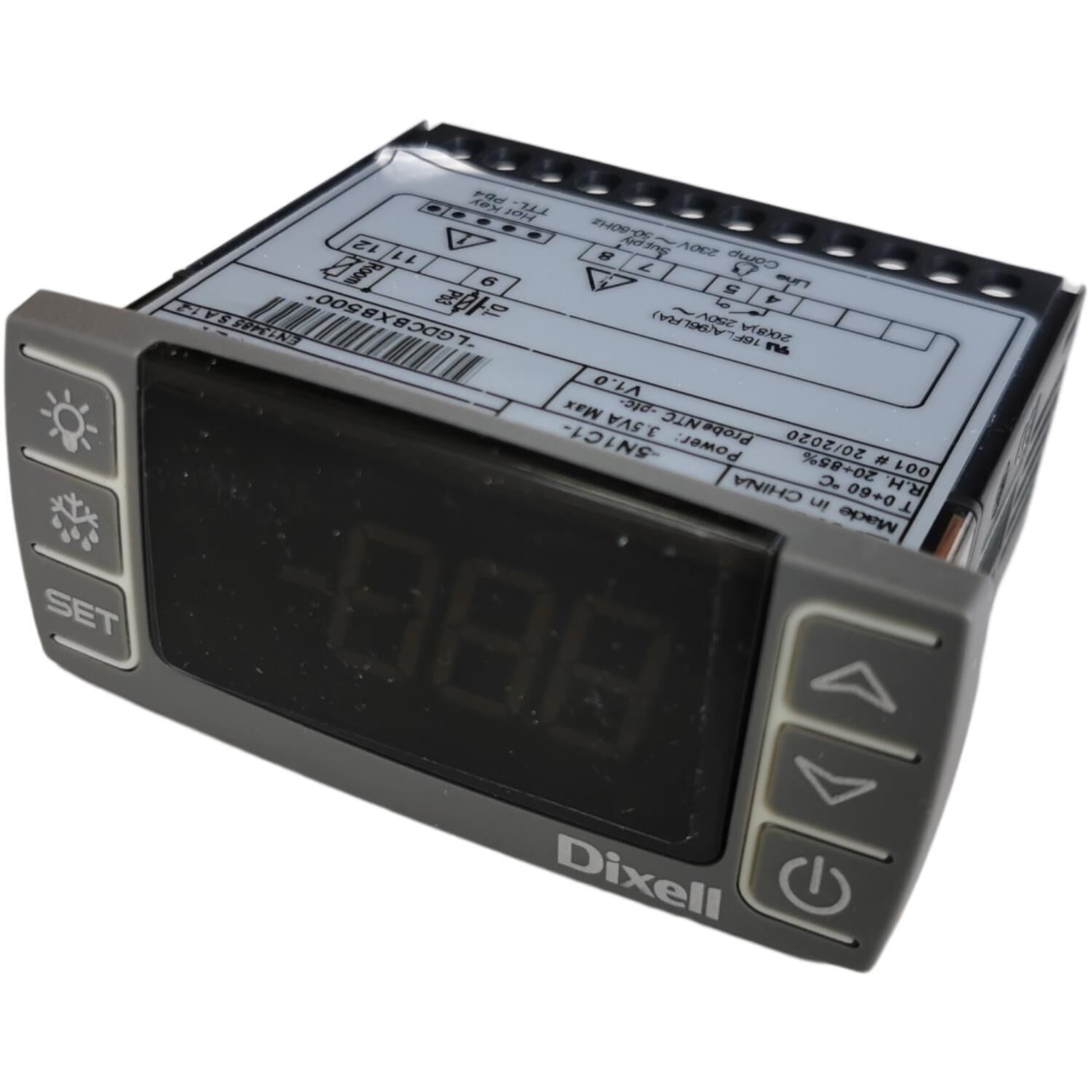

Title: XRi77CX-5N713 Digital Controller DIXELL

Brand: Dixell

MPN: XRi77CX-5N713

SKU Number: HTN_0003785

Notes:

Brand:  DIXELL

Model:  XRi77CX-5N713

GENERAL DESCRIPTION

Model XRi77CX-CH, format 32x74mm, is microprocessor-based controller, suitable for applications on medium or low temperature ventilated refrigerating units. It has four relay outputs to control compressor, fan, defrost, which can be either electrical or reverse cycle (hot gas) and light (configurable). It could be provided with a Real Time Clock which allows programming of up to 6 daily defrost cycles, divided into holidays and workdays. A “Day and Night” function with two different set points is fitted for energy saving. It is also provided with up to four NTC probe inputs. The first probe is used for temperature control. The second probe is used to control the defrost termination temperature at the evaporator. One of the two digital inputs can operate as third temperature probe. The fourth probe is used to control the condenser temperature (for condenser alarm management) or to display a temperature. The RS485 serial output allows connecting the unit to a network line (ModBUS-RTU compatible) such as any Dixell monitoring units of X-WEB family. The HOT-KEY receptacle allows programming the controller by using an HOTKEY programming device. The instrument is fully configurable through special parameters that can be easily programmed through the frontal keyboard. 3. CONTROLLING LOA


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003785
Brand Dixell
Shipping Weight 1.0000kg
