DESCRIPTION

This replacement is compatible with DIXELL Air Conditioners.

Ricambi Appliance Spares is a family-owned business based in Sydney, NSW, with strong industry roots. We specialize in sourcing genuine, OEM, and high-quality appliance parts from around the world, including compressors, to serve the Australian market. Our expertise focuses on Italian and German brands, along with a wide range of compressors from global manufacturers.

TECHNICAL SPECS

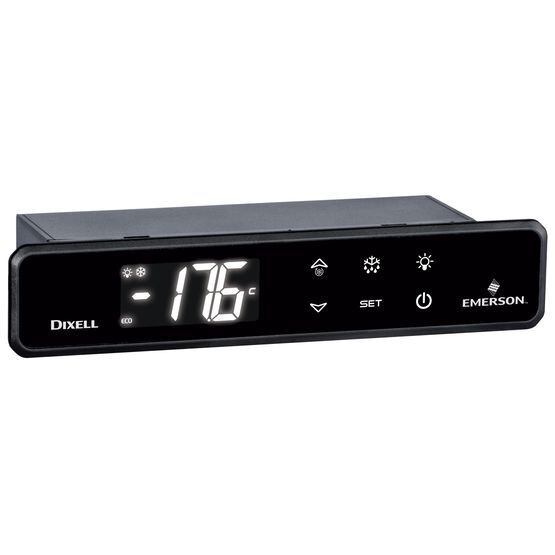

Title: XW60LH-5N1D0R Digital Controller DIXELL

Brand: Dixell

MPN: XW60LH-5N1D0R

SKU Number: HTN_0003794

Notes:

Brand:  DIXELL

Model:  XW60LH-5N1D0R

DIGITAL CONTROLLER FOR NT AND LT WITH ELECTRICAL OR HOT GAS DEFROST FUNCTION AND FANS WITH RED, WHITE OR BLUE DISPLAY

Generals

Keyboard: 6 push buttons

Probe inputs

Thermostat: NTC, PTC - Defrost: NTC, PTC - Condenser: NTC, PTC - Display: NTC, PTC

Digital inputs

2 x configurable

Relay outputs

Compressor: 20A - Defrost: 8A - Fans: 8A - Light: 8A, 16A

Other

Hot Key / Prog Tool Kit output: present
Serial output: TTL
Remote display output: optional
Buzzer: optional
Real time clock: optional

Power absorption

10VA max

Display

3 digits, red LED, 14,2 mm high

Data storing

on the non-volatile memory (EEPROM)

Operating temperature

0÷60 °C

Storage temperature

-30÷85°C

Relative humidity

20÷85% (no condensing)

Measuring and regulation range

NTC probe: -40÷110°C
PTC probe: -50÷150°C

Resolution

0.1°C or 1°C

Accuracy (at ambient temperature)

±0.7°C ±1 digit

Power supply

110, 230Vac

Features

  • Direct live and neutral load connections for reduction of wiring costs
  • Direct driving of compressors up to 1,2HP (20A relay inside)
  • Direct line power supply. No external transformer required
  • Up to 8 push buttons with direct action for user friendly interface
  • Maximum and minimum temperature recording
  • High and low humidity control simple or floating
  • Smart defrost
  • Integrated functions for energy saving
  • Hot Key for quick and easy programming
  • Connection for remote display
  • Serial connection to monitoring systems


Ricambi Appliance Spares is not liable for any damage resulting from incorrect selection or improper installation of spare parts.

All electrical components must be installed by a qualified electrician, and all technical products should be installed by a professional technician.

PCB returns will not be accepted once theseal is broken.

Errors and Omissions Disclaimer:

While we strive to ensure all information on this website is accurate and genuine, Ricambi accepts no responsibility for its use or for any potential infringements of patents or third-party rights that may occur.

Legal Disclaimer:

All trademarks, logos, and other representations are the property of their respective owners. The use of brand names, trademarks, or logos does not implythat RICAMBI is affiliated with or authorized by those brands, companies, or trademark holders.

RICAMBI does not claim ownership of any products or services provided by these companies.

SPECIFICATIONS

SKU HTN_0003794
Brand Dixell
Shipping Weight 1.0000kg
